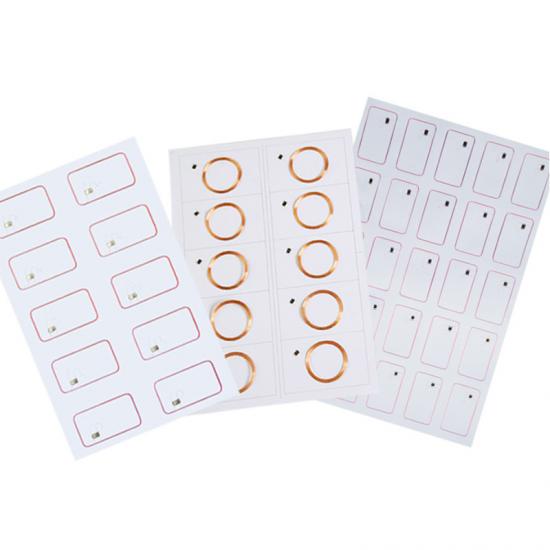

PVC Plastic RFID Cards Inlay Sheet

• PVC Plastic RFID Cards Inlay Sheet

• Description：

This product is a PVC RFID card inlay sheet that can be used to make RFID cards for various applications. DAFTags using a high quality and durable PVC plastic sheet that can can provide us our high performance and best Prelam Inlay Sheet for our clients. This RFID Inlay Sheet is coming in RFID technology and supports different chip, such as LF 125KHz, HF 13.56MHz, 860-960MHz or contact chip modules. Customized size, shape, inlay antenna or layout design according to the client's request.

The edge of RFID Card Prelam is smoothly and without burrs, and test the cards by scanner with RFID reader, 100% ensure the card can be read correctly and has no errors.

Product	Customized RFID Card Inlay Sheet
Material	PVC, PC, PET
Color	White or Transparent
Standard	ISO14443, ISO15693, ISO 18000, etc.
Dimension	310*468mm, Max. size 520*420mm, A4 210*297mm, etc.
Layout	2*5, 4*5, 5*5, 4*6, 4*7, 4*8, 4*10, 3*6, 3*7, 3*8, 6*7, 6*8, 6*14 or customized.

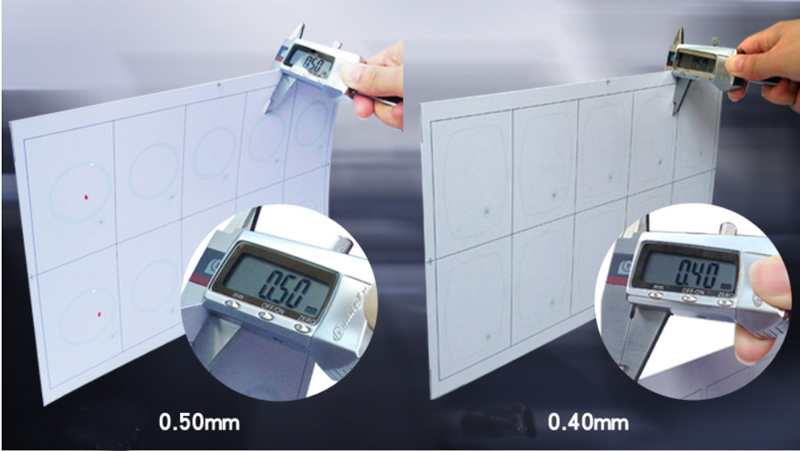

Thickness	HF: normal 0.45mm, 0.5mm, min.0.3mm LF: normal 0.6mm, Min. 0.5mm UHF: 0.6mm, 0.5mm
Frequency	125KHz, 13.56 MHz, 860-960 MHz
Protocol	ISO/IEC 11784/785, ISO14443A, ISO15693, ISO18000-6C
Available Chips	125KHz LF: TK 4100, EM 4200, EM 4305, T5577, HID, HITAG 1, HITAG 2, HITAG S, etc. 13.56MHz HF: FM11RF08, MF S50, FM11RF32N, MF S70(4KB), ICODE SLI, ICODE SLI-X, ICODE SLI-S, MF UTL EV1, MF UTL-C, MF D21, MF D41, MF D81, MF PLUS S, MF PLUS X, MF PLUS X, TAG-IT, NTAG 213, NTAG 215, NTAG 216, TOPAZ512, etc. 860-960MHz UHF: U-CODE EPC G2, U-CODE G2XL, U-CODE G2XM, Alien H3, Alien H4, Monza 3, Monza 4, Monza 5, etc.
Memory	512 bits, 128 bits, 1K Byte, 4K Byte, 144 Byte, 888 Byte, etc.

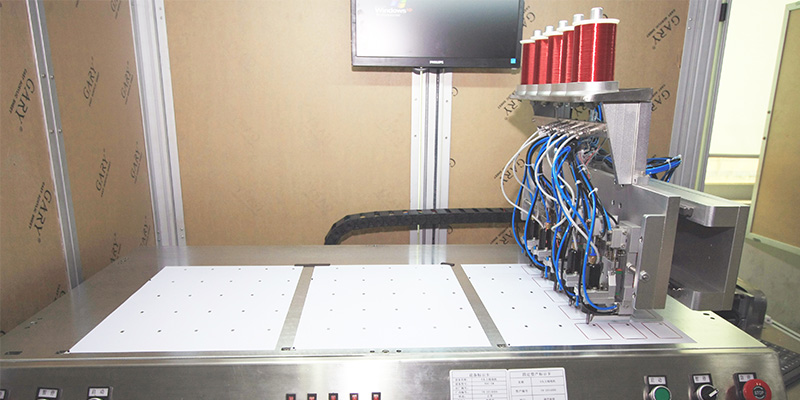

Antenna	HF: AL Etching, Pre-winding Copper Coil, Ultrasonic Embedding LF: Pre-winding Copper Coli, AL Etching UHF: AL Etching
Read Range	It's depend one reader and chips
Work Temperature	-25℃ ~ +55℃
Store Temperature	-25℃ ~ +65℃
Applications	Access Control & Security, Time Attendance, Logical Access, Public Transport, City Card, etc.

• Why Choose Us?

Other supplies	Our Factory
Using rough and crisp material	Using the smooth and resilient 100% full new material
