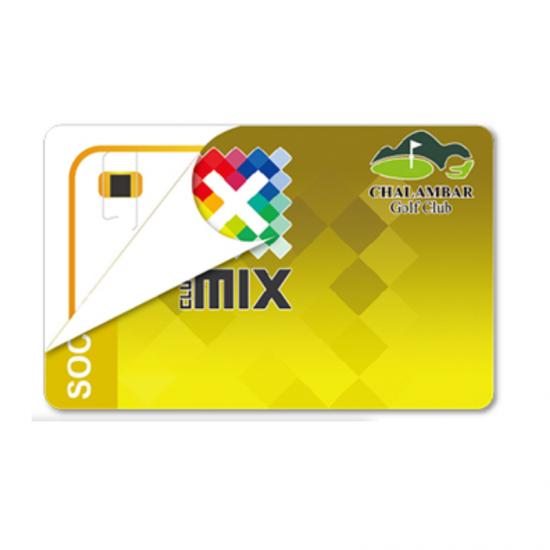

13.56 MHz FM11RF08 RFID Access Card for Salto
The FM11RF08 RFID access card is designed for compatible Salto key-lock systems. It uses an FM1108 / F08 chip that is compatible with MF Classic 1K cards, operates at 13.56 MHz, and can be custom printed and encoded for hotel or access projects.
Salto systems can differ by lock model, software version, encoder, sector layout, and key settings. Compatibility must be confirmed with the actual system before a production order is placed.
Why Salto Compatibility Is More Than the Chip Name
- The lock software must accept the card data: The FM1108 chip may be compatible with MF Classic 1K, but the Salto system still needs the correct sector and key structure.
- Card initialization must match the property setup: The card may need specific data, site codes, validity rules, or lock-system settings.
- Physical thickness matters: Card thickness, surface finish, and overlay can affect insertion or presentation at the lock reader.
- Encoding is project-specific: The same blank card can behave differently when the Salto data and key settings are not correctly configured.
- Replacement cards should match the current population: Existing cards, the lock model, and the current software setup should be reviewed before reordering.
What the FM1108 Card Provides
- 13.56 MHz HF operation: ISO/IEC 14443A contactless communication.
- MF Classic 1K-compatible chip: FM1108 / F08 memory and data support for compatible access systems.
- 1 KB data capacity: Card data layout depends on the Salto configuration and encoding method.
- Read and write support: Suitable for compatible access and identification workflows.
- Custom card appearance: PVC, ABS, PET, or PP material with printed or personalized surface options.
Technical Specifications
| Product Model | DFFJ004 |
| Product Type | RFID access card for Salto systems |
| Chip | FM1108 / F08, compatible with MF Classic 1K-type cards |
| Memory | 1 KB |
| Frequency | 13.56 MHz |
| Protocol | ISO/IEC 14443A |
| Read / Write | Read and write, subject to system configuration |
| Reading Range | 0-5 cm, depending on reader, antenna, and card position |
| Read / Write Endurance | At least 100,000 cycles per supplier listing |
| Card Material | PVC, ABS, PET, or PP |
| Card Size | 85.5 x 54 mm standard or custom |
| Thickness | 0.3-2 mm, with 0.76 mm listed as standard |
| Surface | Glossy, matte, or frosted |
| Printing | Silkscreen or CMYK printing |
Printing, Personalization, and Card Craft
- Signature panel
- Magnetic stripe
- Scratch-off panel
- UV spot printing
- Gold, silver, or rainbow hot foil
- Barcode or QR code
- Engraved serial number
- DOD numbering
- Card data encoding
Other Chip Options
The source listing also includes MF Classic S 50, MF 4K S 70, Ultralight, ICODE SLI-X, ICODE SLI, ICODE SLI-S, NTAG213/215/216, Tag-it HF-1 Plus, FM11RF32, and other chip options. Chip selection should follow the lock system and software requirement.
What to Confirm Before Ordering
- Salto lock model, software version, and encoder
- Current working card data and sector/key requirements
- Required encryption or authentication setup
- Card material, thickness, size, and finish
- Printing, numbering, barcode, magnetic stripe, or foil details
- Required sample quantity and production volume
- Delivery date, destination, and replacement-card requirements
Sample and Production Options
The source listing states that samples or similar cards can be supplied for testing, with sample production around 1-3 days. Custom production is listed at about 3-5 days for smaller batches and 5-7 working days for larger quantities, subject to artwork approval and current production load.
Confirm the latest sample policy, production schedule, shipping method, and documentation before placing an order.
Applications
- Salto hotel room access
- Office and building access control
- School and campus card systems
- Fitness and membership access
- Other compatible MF Classic 1K access projects
Warranty and Service Terms to Confirm
The supplier listing mentions a warranty, replacement for inaccurate cards, and delivery compensation terms. These are commercial commitments and should be provided in the quotation or contract for the exact order.
- Warranty length and coverage
- Definition of an inaccurate or defective card
- Replacement quantity and shipping responsibility
- Delivery compensation terms and exclusions
- Current quality or certification documents
FAQ
Will the FM11RF08 card work with every Salto lock?
No single card should be assumed compatible with every Salto model and software version. Confirm the lock model, encoder, card data, and key structure, then test a programmed sample.
Can the card be encrypted?
The chip supports compatible access-security functions, but the encryption method depends on the Salto system, key management, and card configuration.
Can I send an existing Salto card for matching?
An existing working card and reader or encoder details help the supplier compare the chip, data structure, and sector keys before quoting.
Can the card be custom printed?
Yes. Silkscreen or CMYK printing, numbering, barcode, magnetic stripe, signature panel, foil, UV spot, and other card craft options can be discussed.
Can other chips be supplied?
Other chips are listed, including MF Classic S 50, MF 4K S 70, ICODE, NTAG, and Ultralight options. The correct chip depends on the lock and software system.
What should be sent for a quotation?
Send the Salto lock model, software or encoder details, a working card sample, required data format, card material, artwork, quantity, and delivery country.
Request a Salto RFID Card Quote
Send your Salto lock details, current card information, required encoding, print artwork, card material, and order quantity. We can then confirm compatibility and the sample plan.
