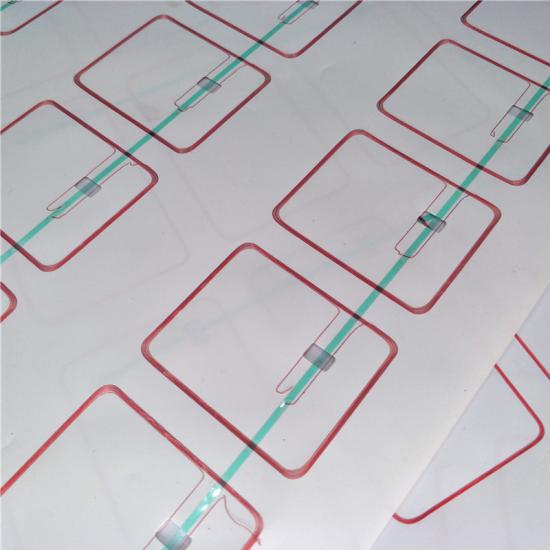

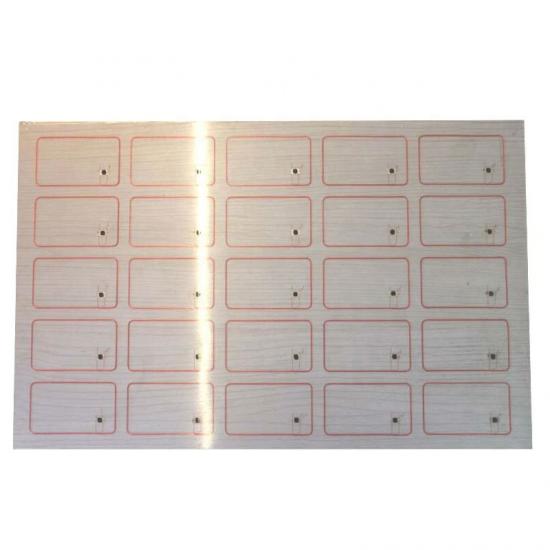

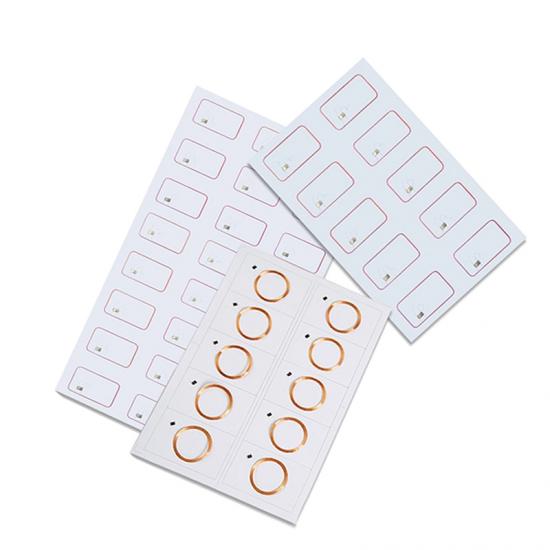

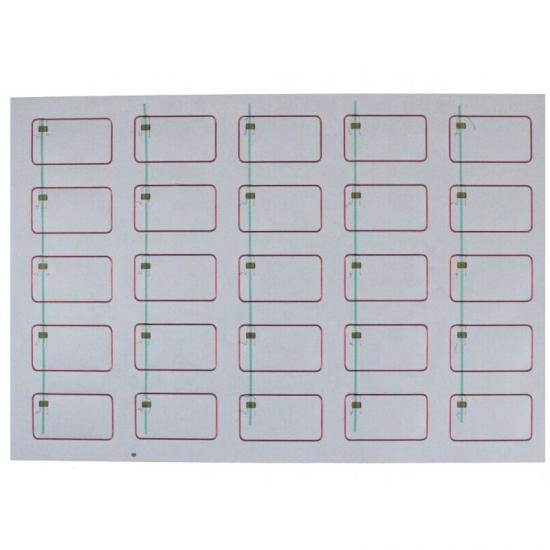

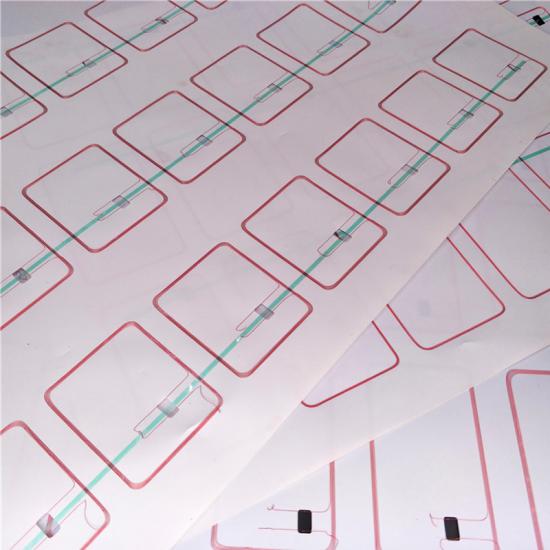

125Khz RFID Card Prelam Inlay Sheets
- Description :
Customizable Layout laminated RFID card rfid inlay pre-laminated inlays are designed specifically with the card manufacturer in mind. The inlay is engineered to remove process difficulties and offer an exceptional product.Our inlays are very robust and boast unequaled torsion / bending characteristics, the edge smoothly, extreme durability and optimized read / write performance. The inlays have a completely flat finish and bring numerous benefits to card manufacturers.We make the card manufacturer's job easier.

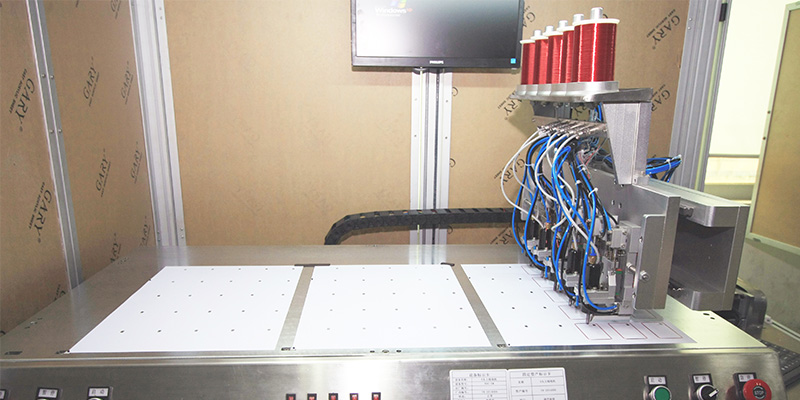

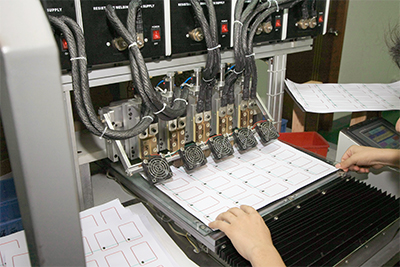

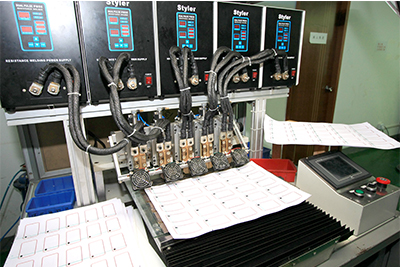

Products Processing Display :
Products Description :
Materials:
PVC, PETG, PC
Colour:
White or Transparent
Standard:
ISO14443, ISO15693, ISO 18000, etc.
Available Chip：
EM4200,TK4100,T5577, I-Code, Ntag203/213/215/216, Desfire, MF S 70/ S 50,Ultralight C or demand.
Dimension:
310*468mm, Max. size 600*500mm, A4 210*297mm, etc.
Layout:
2*5, 4*5, 5*5, 3*8, 4*8, 6*8, 6*10, or any customized
Thickness
HF: normal 0.45mm, 0.5mm, min.0.3mm
LF: normal 0.6mm, Min. 0.5mm
UHF: 0.6mm, 0.5mm
Antenna:
HF: AL Etching, Pre-winding Copper Coil, Altrasonic Embeding
LF: Pre-winding Copper Coli, AL Etching
UHF: AL Etching
Bonding:
LF: Wire Bonding
HF: FlIP Chip, Wire Bonding, MOA2
UHF: FlIP Chip
Read Range:
more than 50mm with our reader
Applications:
Access Control & Security, Time Attendance, Logical Access, Public Transport, City Card, etc.
Working Temperature:
-25℃ ~ +55℃
Store Temperature:
-25℃ ~ +65℃
Why Choose Us ?
- Variety of RFID on option (HF/LF) for alternation
- Different kinds of material, including PVC, PETG
- High reading distance optimized to each chip
- Option of combining two different chip technologies in one prelam
-Different sheet formats are available 1 × 5, 2 × 4, 2 × 5, 3 × 6, 3 × 7, 3 × 8, 3 × 10, 4 × 8, 4 × 10, 6 × 8, up to 640 × 520 mm, others upon request
- Delivery time and guarantee
More Services We can Offer For Our Clients :
- Ability to different RFID antenna, in different RF protocol, and frequency.
- Research and different encapsulation for special environments.
- Data encoding and encryption optioans.
- Transponder base on correspond with customer reader.
- Individual process.
Delivery Methods:
1 DHL, FEDEX, UPS, TNT, ARAMEX, Door to
door service
2 By air or by sea for bulk goods;
3 Support customer specifying forwarder or
shipping method
4 Delivery time: 3 working days for stock
products, and 7-15 business days for other products in 10000pcs.
