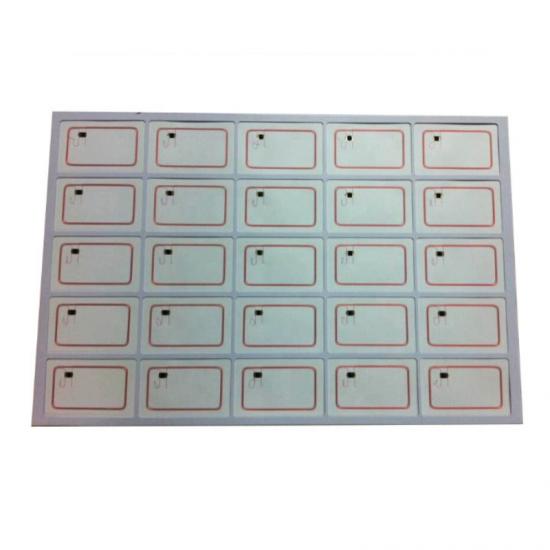

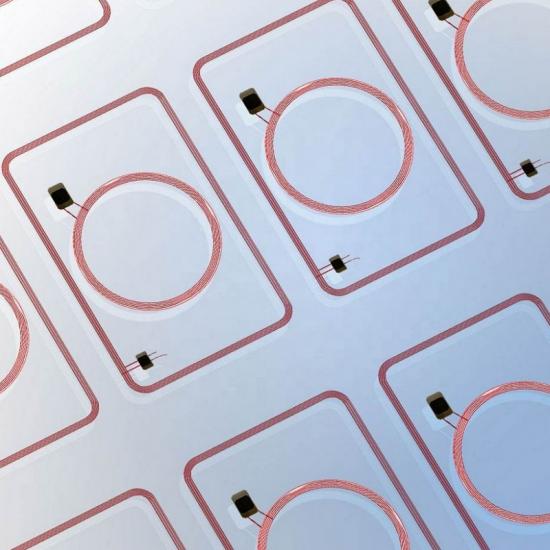

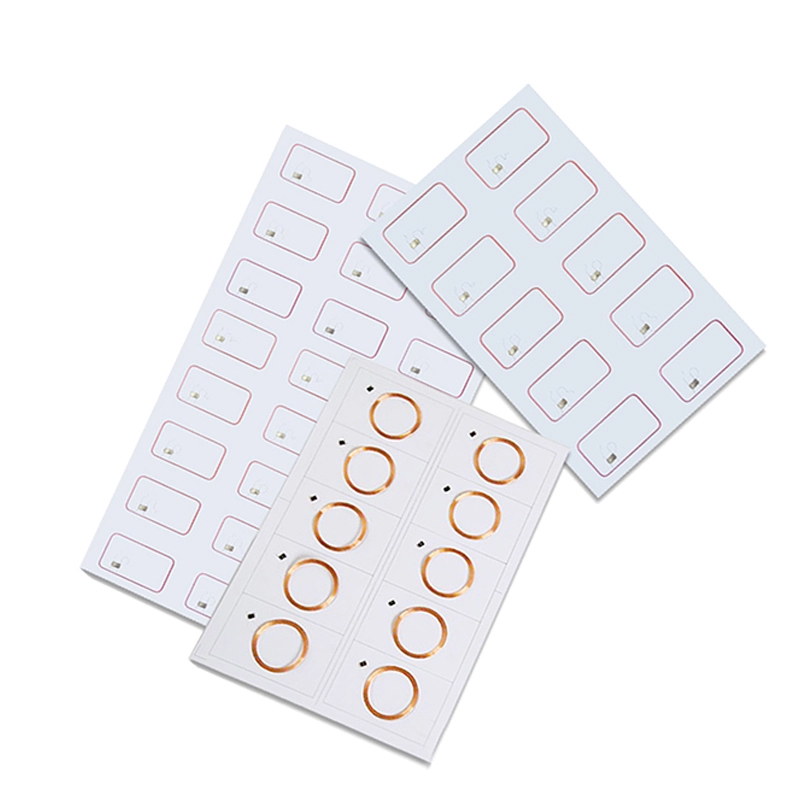

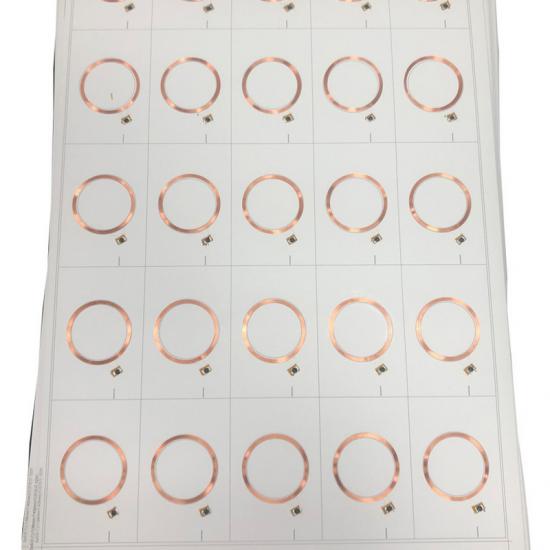

- Customized RFID Prelam Inlay For RFID Cards
- Description：
Customized RFID Prelam Inlay For RFID Cards is a core component of RFID card production. It is a sheet that contains an antenna and a chip for storing and transmitting data. DAFTags provides RFID Card Prelam without burrs, but has smoothly, completely flat, good bending, durable and high performance.
Using our inlays have a completely flat finish to produce RFID cards, so making numerous benefits and save cost to card manufacturers. We make the card manufacturer's job easier and effectively.
The Inlay Prelam can be customized in size, shape, inlay antenna, and design according to your needs. These RFID Prelam Inlays are widely used in various cards, such as payment card, hotel key cards, school ID cards, access control cards, credit bank cards etc,.
 |
|
|
Product |
Custom RFID Prlam Inlay Sheet |
|
Material |
PVC, ABS, PET |
|
Layout |
5*5, 3*8, 2*5, 3*7, 4*5, 4*8, etc |
|
Thickness |
0.3mm, 0.45mm, 0.50mm, 0.55mm, 0.60mm, etc |
|
Available Chips |
125KHz：TK4100/EM4200/EM4102/EM4305/T5577/Hitag 1 etc. |
|
13.56MHz：FM11RF08, MF S50, FM11RF32N, MF S70(4KB), ICODE SLI, ICODE SLI-X, ICODE SLI-S, MF UTL EV1, MF UTL-C, MF D21, MF D41, MF D81, MF PLUS S, MF PLUS X, MF PLUS X, TAG-IT, NTAG 213, NTAG 215, NTAG 216, TOPAZ512, etc |
|
|
840-960MHz : Alien H3/H4/U Code/Monza 3/Monza 4QT/UCODE etc. |
|
|
Please consult our customer office for more chips. |
|
|
Memory |
1K bits, 256byte/1024byte/2k/16k/64k/80k , etc |
|
Reading or Writing distance |
1-10cm, depends on the reader and envirnment |
|
Personalization |
Serial number, barcode, magnetic stripe, QR code, encoding, etc |
|
Package |
Carton |
- Why Choose Our RFID Prelam Sheet ?
- Hight Sensitive

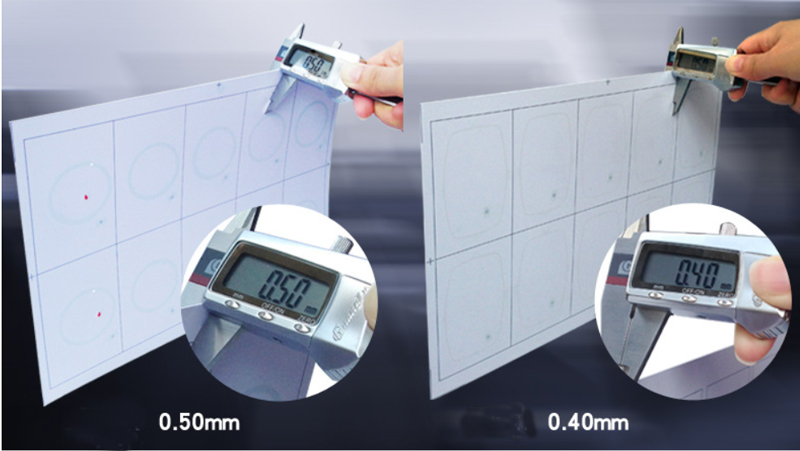

- 0.3MM Ultra Thin Thickness
- Easy To Use
- Various Of Chips Are Supported
- Custom Plastic Material
- Custom Sizes Or Shapes Or Thickness Are Available
