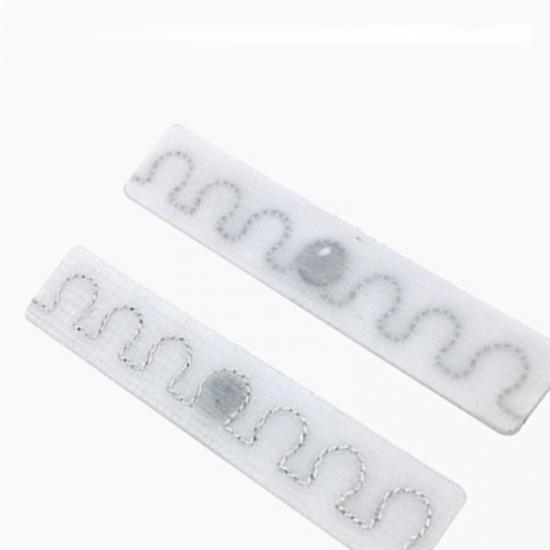

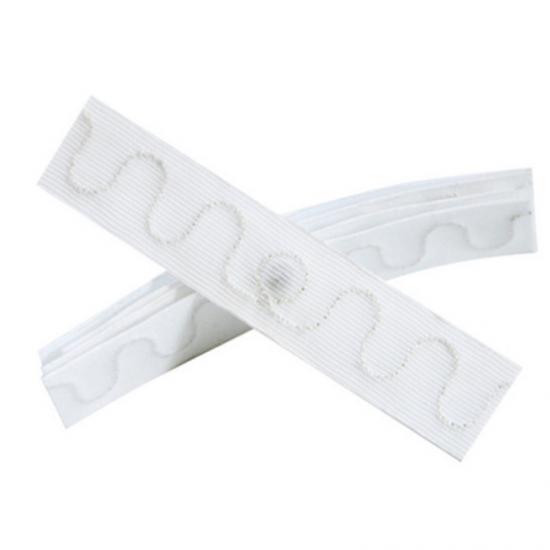

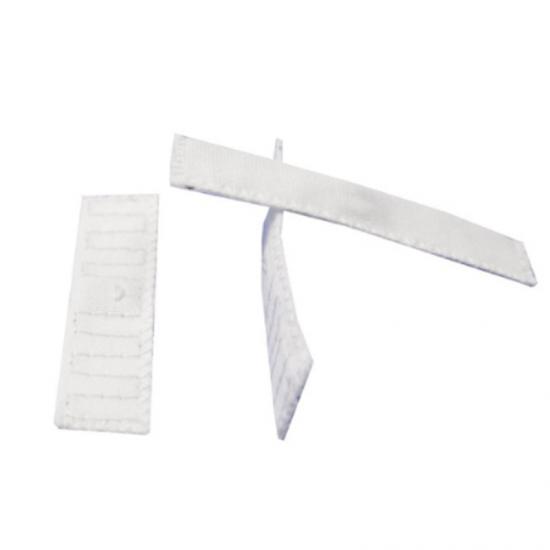

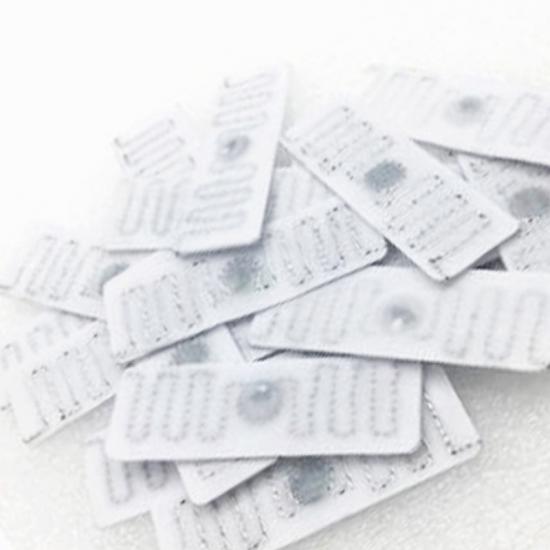

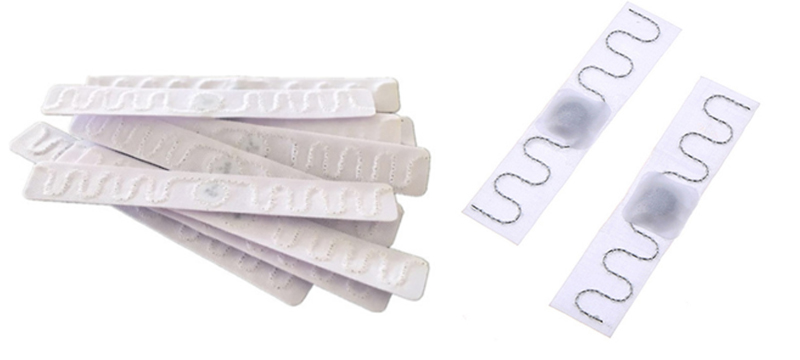

UHF RFID Clothing Washing Label For Clothing Management
Shortly Description：
This textile laundry tag is one of industrial laundry tag , the both material and design have been tested for reliable , supports 100% function tested .The size and RFID chip are to be customized according to clients' requirements.
Product Details :
|
Technical Specification: |
|
|
Product Name |
Soft Flexible UHF RFID Laundry Tag |
|
Material |
Fabric/Textile |
|
Size |
20mm x 87mm; 18mm x 87mm; 20mm x 65mm or customized |
|
Thickness |
1.6 mm |
|
Weight |
1.3g |
|
Oprating frequency |
865~868MHz,902~928MHz |
|
Chip |
Impinj M4QT |
|
Reading distance |
Up to 5.5 meters ( ERP=2W ) |
|

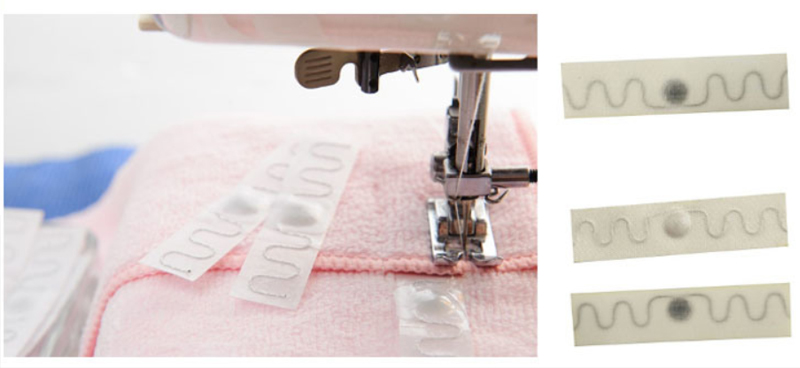

Mounting method |
Sewn,pouched |
|

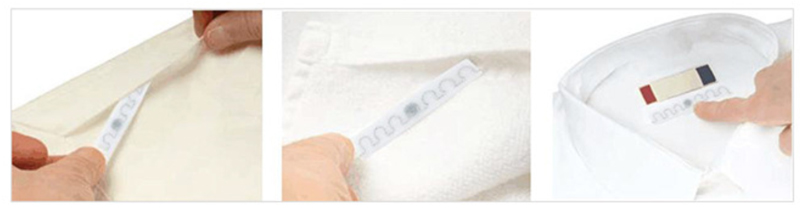

Affixes to |
Linens and garments |
|
Power Supply |
Passive |
|
Storage Temperature |
-40℃~+85℃ |
|
Operating Temperature |
1, Washing : 90℃(194oF), 15Minutes ,200 Cycles 2, Pre-drying in tumble : 180℃(320oF), 30Minutes 3，Ironer : 180℃(365oF), 10Seconds ,200 Cycles 4，Sterilizion Process: 135℃(270oF),20Minutes |
|
Chemical |
Normal common chemicals in the washing processs |
|
Polarized |
Liner |
|
Color |
White |
|
Features: |
1).Ultra-thin 2).Flexible 3).Soft material 4).Entirely made of fabric. |
Advantage :
- Guarantee more than 200 wash cycles
- High temperature resistant material
- Can be lasered with bacode
- Resistant to waterproof
- Both material and design have been tested for reliability
-
Make sure 100% function tested

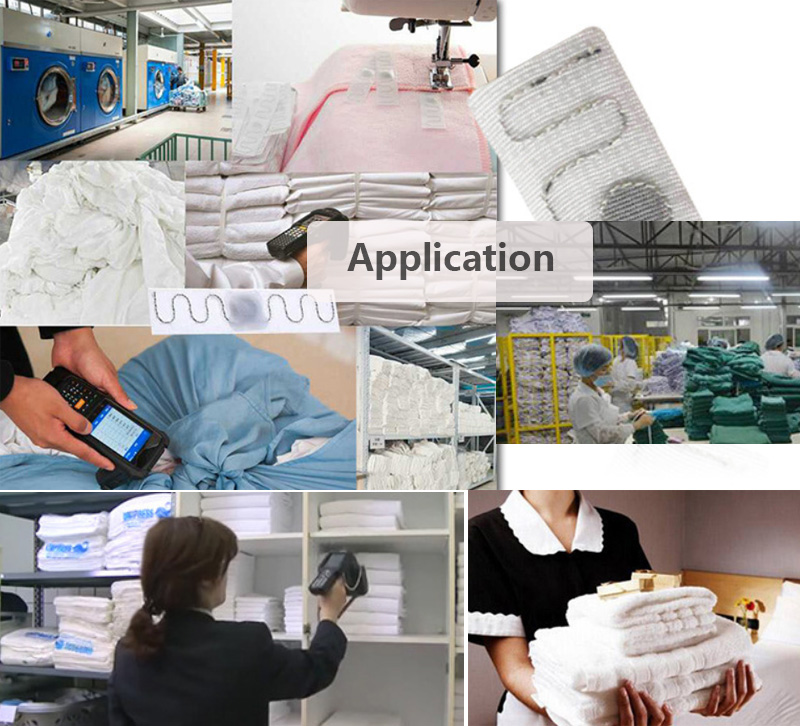

Application :
- Hospital Bedsheet
- Workwear Management
- Inventory Management
- Wine List
- Classified Management
- Line Asset Tracking
- Hotel Bedsheet
- ......
Package :
