- Item:UHF Washable RFID Tags
- Frequency options: FCC / ETSI / CHN.
- More than 200 wash cycles, Both material and design have been tested for reliability,100% function tested.
- Can customize size for customers, Soft material, Smaller module inside the tag, Can stick under 60 bar pressure.

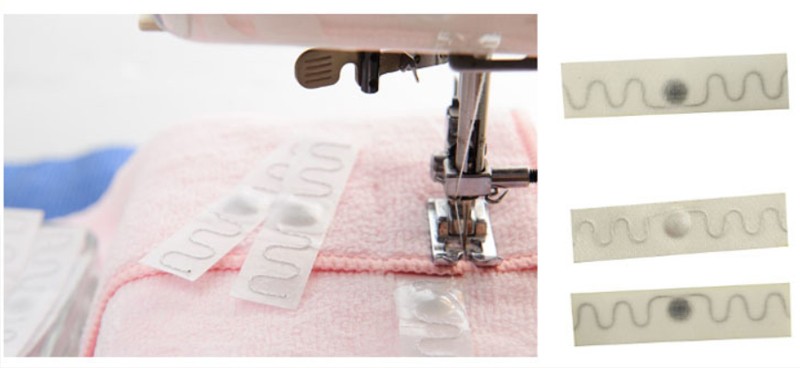

- It can be fixed by sewing.
![]() |
![]() |
- What's Advantage Of Textile RFID UHF Laundry Tag:
- More than 200 wash cycles.
- Both material and design have been tested for reliability.
- 100% function tested before shipping.
- Factory price.
|
Technology Details: |
|
|
Compliance |
EPC Class1 Gen2, ISO18000-6C |
|
Chip |
Impinj R6P |
|
Frequency |
865~868MHz, or 902~928MHz |
|
Memory |
EPC 96bits,User 32bits |
|
Read/write |
Yes |
|
Data Storage |
20 years |
|
Lifetime |
200 wash cycles or 2 years from shipping date (whichever comes first) |
|
Power Supply |
Passive |
|
Read distance |
Up to 5.5 meters (ERP=2W) Up to 2 meters ( With ATID AT880 handheld reader) |
|
Product Details: |
|
|
Material |
Textile |
|

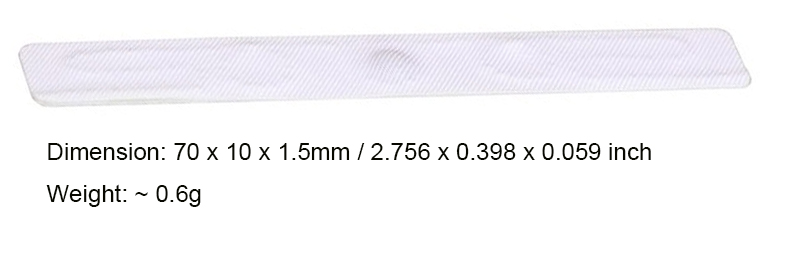

Dimension |
70 x 10 x 1.5mm / 2.756 x 0.398 x 0.059 inch |
|
Weight |
~ 0.6g |
|
Color |
White |
![]() |
|
|
Storage Temperature |
-40℃~ +85 ℃ |
|
Operating Temperature |
|
|
Mechanical Resistance |
Up to 60 bars |
|
Delivery format |
Single |
|
Installation Method |
Thread installation |
|
RoHS |
Compatible |
| Chemicals |
Normal common chemicals in the washing processes |
|
Polarization |
Liner |
|
Package |
Antistatic bag and carton |
![]() |
|
This UHF Textile RFID Laundry Tag is widely used for Textile or Off Metal applications. Such as:
- Industrial washing.
- Management of uniforms.
- Medical apparel management.
- Military clothing management.
- Personnel patrol management.
