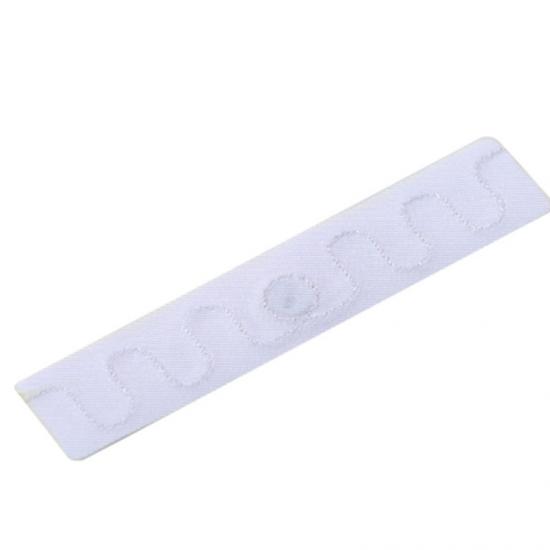

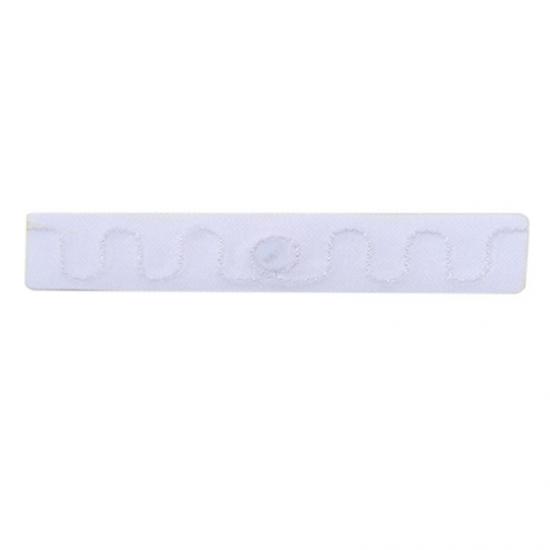

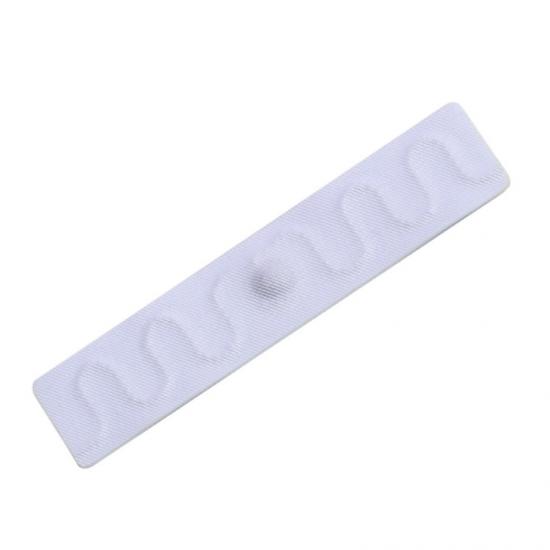

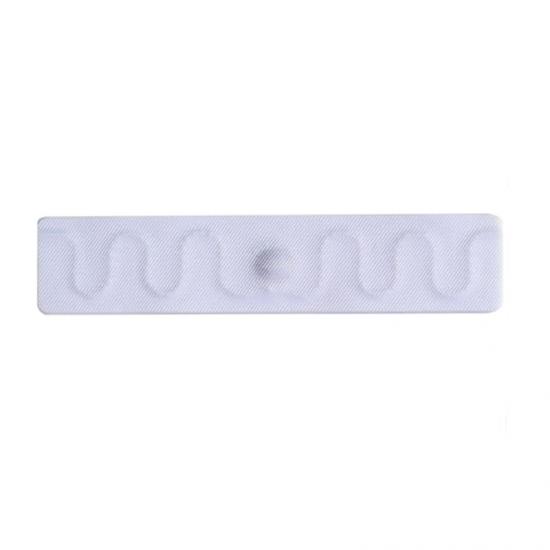

Soft Flexible Ucode 7M UHF RFID Laundry Care Tags

The Laundry Care Tags are flexible ,and ultra-thin, high  temperature resistance and waterproof. It can be more than 200 times washing cycle. The both material and design have been tested for reliable , supports 100% function tested .The size is to be customized according to clients' requirements.

  • Item no.:

    DFFZB003
  • Payment:

    T/T,Western Union, PayPal, MoneyGram
  • Product origin:

    China
  • Color:

    White
  • MOQ:

    500PCS
  • Shipping port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Details

Soft Flexible Ucode 7M UHF RFID Laundry Care Tags




The Soft Flexible Laundry Care Tag it is an ultra-high frequency soft washing label that can be washed more than 200 times in industry. In the case of industrial and medical washing, it can withstand 60 Bar atmospheric pressure, and its performance is stable and reliable.
According to different installation methods, this Soft Flexible Laundry Tag has two models,please see the images In the following:

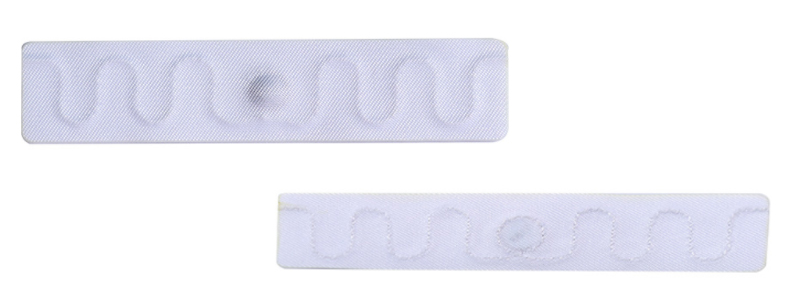

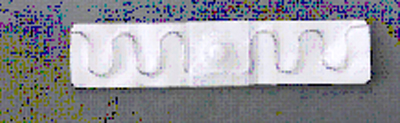

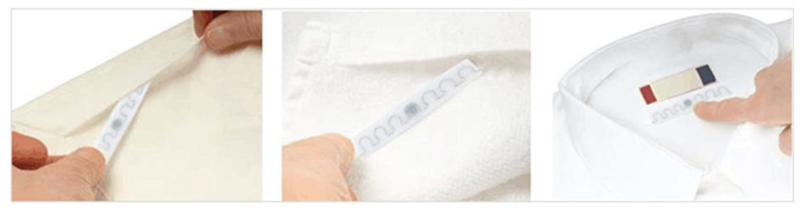

NO:10-Laundry DFT-1

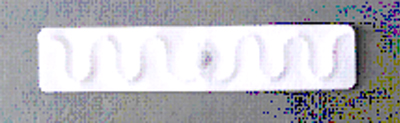

NO: 10-Laundry DFT-H

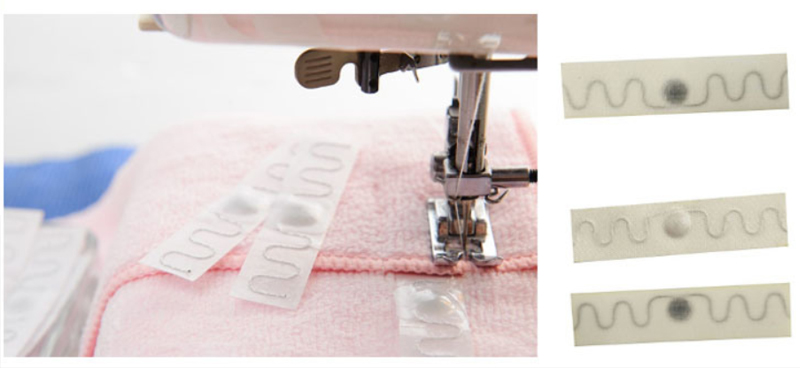

Installation method: 215℃@15~20 seconds hot stamping method, or stitch installation
Installation method: install with suture



Advantages
  • Feathers
  • Really reach and exceed the industrial washing life of more than 200 times
Protocol
EPC Class1 Gen2, ISO18000-6C
  • Supports 100% function tested
Frequency
902-928MHz 、or 865~866MHz

  •  Material and design have been tested for reliability
Chip N X P Ucode 7M
  • The product has passed the 100% RF conformance inspection of Tagformace equipment in Europe and Finland
Storage EPC 96bits  User 32bits
Main Feature:
Read and write Yes, It can be encoded data according to clients' need



  • Soft washing labels can be customized according to customer requirements;
  • Can customize soft washing labels that meet the requirements of MRI testing;
  • Soft, does not damage textiles, and feels good;
  • The chip module size is one of the smallest sizes in the international market;
  • Can withstand 60Bars pressure;
  • It is one of the few models in the global market that can withstand the pre-drying process of 180 ℃ 30 minutes and 200 times;



Data Life
20 Years
Guarantee 2 years or 200 times of industrial washing (whichever comes first)
Material Soft Flexible
Size 70mm x 15mm x 1.5mm or customized
Working temperature
-25 ℃ ~ +110 ℃
Storage temperature
-40 ℃~ +85 ℃
Operating Temperature  1, Washing : 90℃(194oF), 15Minutes ,200 Cycles
2, Pre-drying in tumble : 180℃(320oF), 30Minutes
3,Ironer : 180℃(365oF), 10Seconds ,200 Cycles
4,Sterilizion Process: 135℃(270oF),20Minutes
Storage humidity
5%~95%
Weight 0.7g
Package Carton
Color White
Notice: Bar Pressure
60 bars

*When sewing and installing, the stitching cannot damage the metal wire and chip module on the label;
*When blanching is installed, when the temperature reaches 215℃ to 218 ℃ (15 seconds to 20 seconds), the blanching effect is excellent, and when it is lower than 210 degrees, there is a hidden danger of poor blanching effect;
*Different read-write facilities have different read-write performance.

Reading distance
Up to 5.5 meters ( ERP=2W )
Up to 2 meters (With ATID AT880 handheld reader )

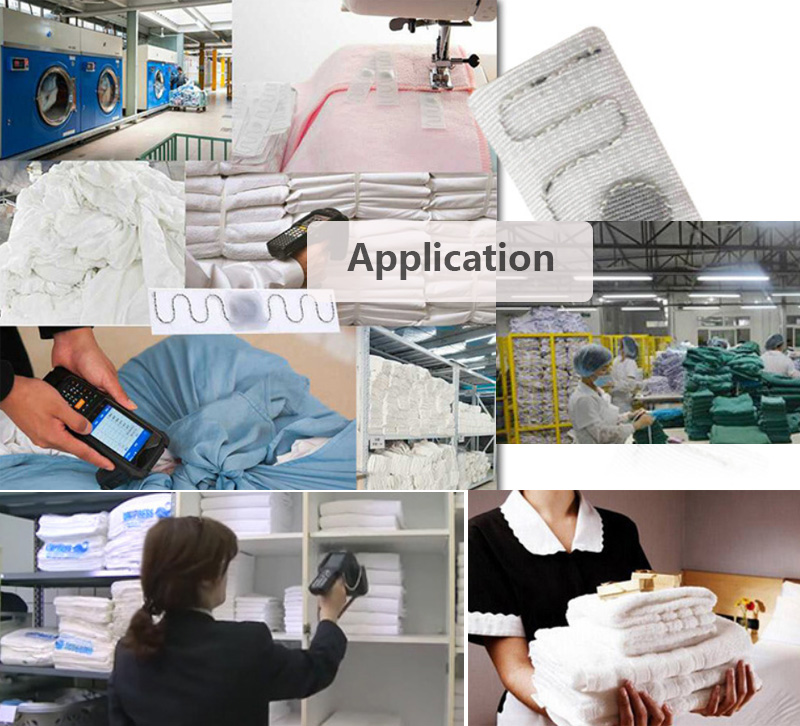

Application:


Hospital Bedsheet
Workwear Management
Inventory Management
Wine List
Classified Management
Line Asset Tracking
Hotel Bedsheet
......




Package:
