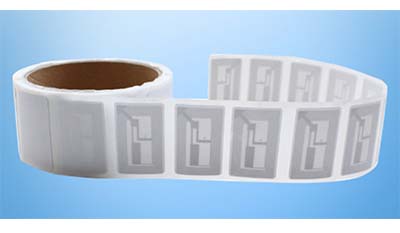

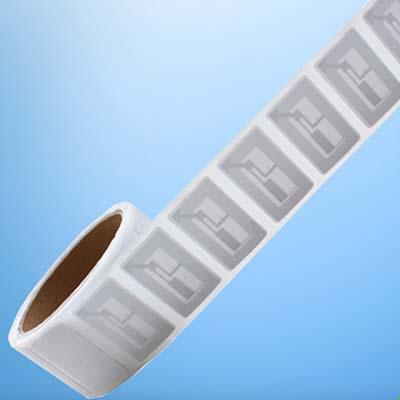

ISO15693 ICODE SLIX2 13.56MHz RFID Library Adhesive Label Tags
How Does RFID Work In Library?
Usually, all of items can located and marked in RFID technology, RFID in Library management is usually and easy to manage the books, such as Identification and tracking, through put a RFID Library Book Tags in Books and using RFID reader to tracking borrowed and return when the books are carriedto the counter, so that to improve work efficiency.
|
1. Performance Specifcations |
|
| Item | I CODE SLIX2 13.56MHz RFID Tags For Library Management |
| Chip Type |
NXP ICODE SLIX2 |
| Protocol |
ISO/IEC 15693, ISO/IEC 18000-3 Mode 1 |
|
Operating Frequency |
13.56MHz |
|
Operating Mode |
Passive(Battery free) |
| Memory |
Total of 2560 bits, organized in 80 blocks of 4 bytes each |
| IC Life |
100,000 Programming cycles, 10 years data retention |
 |
|
|

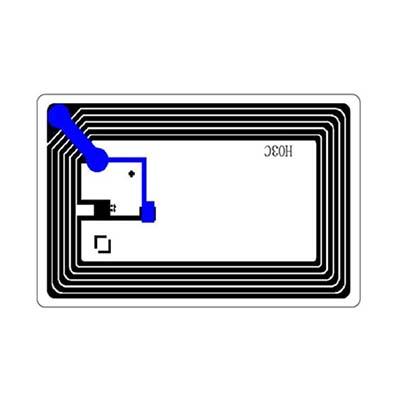

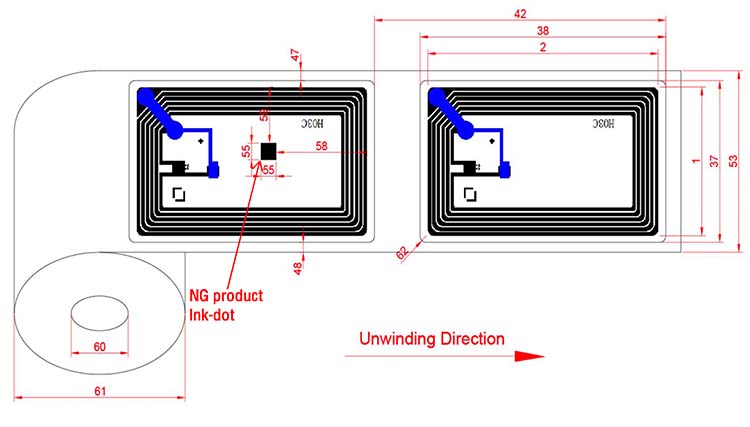

2. Mechanical Dimensions |
|
 |
|
| Antenna Width |
45.00 mm ± 0.20 mm |
|
Antenna Length |
76.00 mm ± 0.20 mm |
|
Label Width |
49.00 mm ± 0.50 mm |
|
Label Length |
81.00 mm ± 0.50 mm |
|

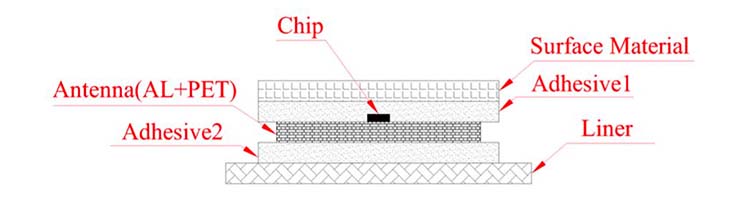

3. RFID HF Library Book Label Structure |
||
 |
||
|
Cover Tape |
White art paper |
80g/m², 72μm ± 5μm |
|
Adhesive 1 |
Acrylic emulsion |
22μm ± 5μm |
|
Antenna |
Aluminum etching |
AL Coil + PET + AL Bridge (30μm + 38μm + 10μm, ± 3μm) |
|
Adhesive 2 |
Acrylic emulsion |
25μm ± 5μm |
|
Liner |
White glassine paper |
65g/m², 55μm±5μm |
|
4. Environment Requirement |
|
|
Operating Temperature/Humidity |
-20~70°C / 20%~80% RH |
|
Storage Temperature/Humidity |
20~30°C / 20%~60% RH |
|
Shelf Life |
1 year in anti-static bag at 20~30 °C / 20% ~60% RH |
|
ESD Voltage Immunity |
2 kV (HBM) |
|
Bending Diameter |
> 50mm |
|

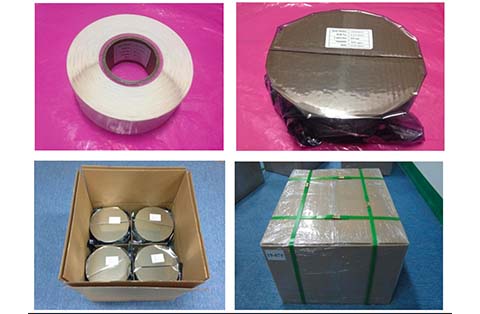

5. Delivery Details |
||
|
Appearance |
Single row reel form |
|
|
Packing |
1000 pcs/Roll;8 Rolls (8 k pcs)/Carton |
|
| Weight |
1.5 kg/Roll;13.5 kg/Carton |
Based on the actual shipment quantity |
|
Final inspection |
100 %, known faulty ones marked |
|
|
Delivery yield |
≥ 99% |
|
 |
||
