Custom T5577 RFID Proximity Card Tags
Programmable T5577 LF 125khz Passive RFID Tags are widely used in as the below :
Such as ,
Retail Environment
Social Media
Games & Toys
Location
Media & Ads
Business Cards
Loyalty Apps
Electronics Pairing
Product Authentication
Ticketing & Payment
Library Management and so on .
The crafts of LF 125Khz RFID Tag can be customized in accordance with customer requirements.
Products Description :
| Type | 125KHz LF RFID Tags |
|
Protocol |
ISO18000-2 |
|
Surface Material |
PVC, PET, Paper or Epoxy |
|
Antenna |
copper coil |
|
Reading range |
0-60mm or custom |
|
Data retention |
10 years in regular |
|
Write/read endurance |
100 000 times |
|
Dimension |
Round: 15/18/20/22/23/25/29/30/32/38/40/50mm etc |
|
Square: 19/25/29/30/35/38/50mm etc |
|
|
Rectangle: 15*20,24*34,25*38,30*35,42*26,44*55,50*80,54*85.5,55*85(mm) |
|
|
Micro size: 8.7*8.7mm, round 9mm, round 15mm, 10*17mm, 8*15mm, 12*12mm, 7.7*14.88mm, 8*14mm, 8*18.5mm, 5.4*19mm, 8*19.5mm, 9.8*16.45mm etc or customized |
|
|
Printing |
Custom 4C LOGO printing or white sticker, wet inlay |
|
Crafts |
1, Number printing (Serial No & Chip UID etc), QR, Barcode etc 2, Chip program/encode/lock/encryption will be available as well (URL ,TEXT ,Number and Vcard) 3, Epoxy, Customize size and shape, Hole punch etc |

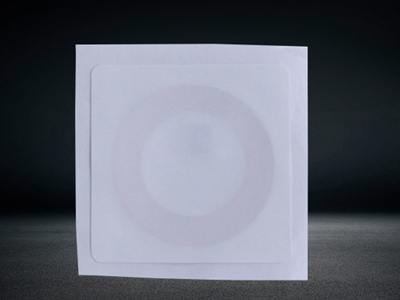

Products Display :
|
Optional |

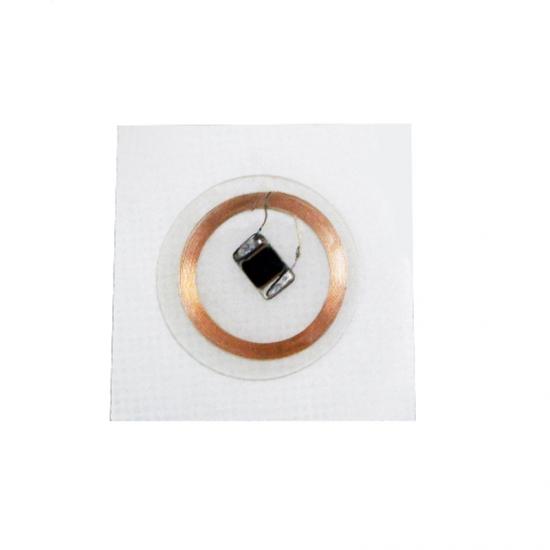

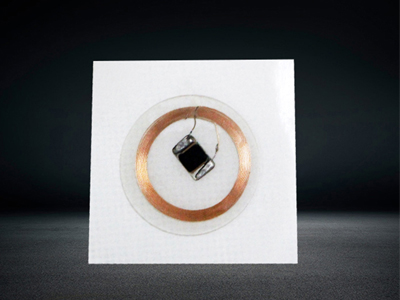

Wet Inlay, Dry Inlay, Label (Paper Label, PVC Label, etc.) |
|
Silk-Screen Printing with Logo, Color |
|
|
3M Adhesive Layer |
|
|
Anti-Metal Layer |
|
|
Chip Encoding |
|
|
Crafts can be customized in accordance with customer requirements for different profucts |
FQA :
Q1. What material and glue of RFID tag we have?
These are some materials widely used:
1. ABS: Aging resistance, heatproof, long lifetime.
2. PVC: Waterproof, flexible, easy to print on.
3. PCB: High temperature resistance, waterproof, smooth appearance.
4. Epoxy: High transparency, waterproof, fracture resistance.
5. PPS: Anti-corrosion, waterproof, high temperature resistance.
6. Silicone: Waterproof, flexile, high cost.
7. 3M Glue: For applications need adhesive. Higher cost but strong viscosity, good temperature
tolerance & anti-corrosion.
Q2. What chip should I use? And Inlay?
We have LF, HF and UHF chips with various memory and reading distance. If you are not sure, please inform our sales with project details.
PS: LF (0-5cm), HF (0-15cm), UHF (1-10m).
Q3. What the data can I encode to each Tag?
We can encode different serial numbers, URL/website, Text to each Tag as your request.
Q4. What file of printing image should I offer to you?
Design Files of AI, PDF, Corel Draw, Photoshop, CAD format are supported. If no, then send us JPG or BMP, we can design for your confirmation, it takes longer time though.
Q5. What about sizes?
All the size and the shape of the final product can be customized as your request.
Q6. RFID Anti-metal material thickness?
We have 0.15mm, 0.2mm, 0.35mm and 0.5mm thick absorbing material for your reference.
：
