Waterproof Alien H3 9654 UHF Windshield Tag For Vehicle Management
Shortly Description：
RFID UHF Windshield Sticke not only increased security against fraud, but also bring customer experience with convenience and ease of use, new payment options, multi-services, reliability and durability, fast transactions with less queuing. And cost efficiency compared with other pvc cards.

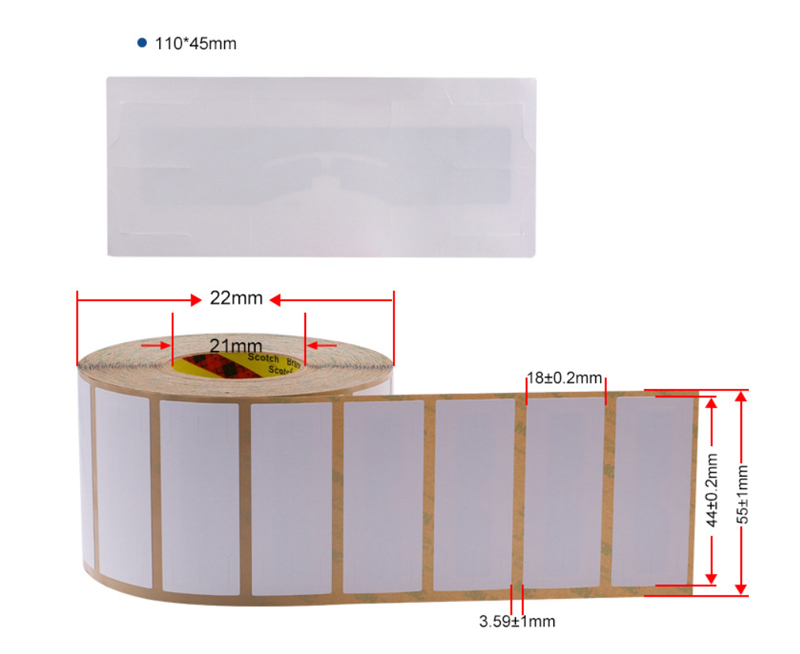

| The Size Of UHF Windshield Tags |

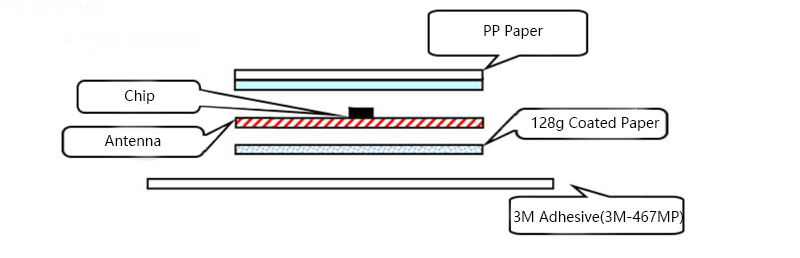

| The Structure |
| Technology Details： |
|
Iterm |
Alien H3 9654 UHF Windshield Tag |
|
Chip |
Alien H3 |
|
Frequency |
860-960Mhz |
|
Protocol |
ISO 18000 6C /6B |
|
Capacity |
32Bit TID, 96Bit EPC Number, 512Bit User memory |
|
Operating |
Read and Write |
| Data set | Write and read 100000 times |
|
Read Distance |
1-15M （depend on reader and environment） |
|
Write Distance |
0-1M（depend on reader and environment） |
|
Chip Life |
10 Years |
|
Anti-conflict |
Yes |
|
Other Features： |
|
|
Size |
110*45*0.3MM |
|
Basic Material |
PP Paper（ Waterproof） |
|
Adhesive Type |
3M Strong Adhesive |
|
Antenna |
Aluminum |
|
Working temperature |
-10℃~+80℃ |
|
Working humidity |
≤80% |
Packing Details：
Standard In Roll：500PCS/Roll，1000PCS/Roll
Standard Package：1Roll/Carton（500PCS/1000PCS）; 4Rolls/Carton(4000PCS)Weight：
- 500PCS：1.5KG；
- 1000PCS：3KG；
- 4000PCS：12KG；
Carton Size：1Roll：23*23*18CM；4Rolls: 46*46*16CM
Features:
- Customized service : Shape and size can be customized,normal size or mirco size uhf rfid sticker
- Antenna type: Aluminum or double copper antenna
- Material : PET waterproof, resistance of chemical and heating or PVC, Paper
- Printing : Custom 4C LOGO printing or white sticker, wet inlay
- Packing : By pcs or roll perfect fit your installation
- Sticker Glue: Use special supur glue and can resistant high temperature 200℃
