Shortly Description：
Why they choose RFID UHF Windshield Sticker for Parking?
- First of all, the RFID Windshield Label can be reliability and end user satisfied with the leading to increased revenue, and then save the number of claims and not need related cost.
- Secondary, the Uhf Windshield Tag compared with magnetic cards and other PVC smart cards, it have more cost effeciency, and eco-friendly of environment.
- The last important is that better customer experience with convenience and ease of use, new payment options, multi-services, reliability and durability, fast transactions with less queuing.
|
Technology Details： |
|
|
Iterm |
Impinj M4QT RFID UHF Windshield Tag |
|
Chip |
Impinj M4QT |
|
Frequency |
860-960Mhz |
|
Protocol |
ISO 18000-6C(EPC GEN2) |
|
Capacity |
96Bit TID, 96Bit EPC Number, 512Bit User memory |
|
Operating |
Read or Write |
|
Data set |
Write and read 100000 times |
|
Read Distance |
1-15M （depend on reader and environment） |
|
Write Distance |
Write Distance：0-1M（depend on reader and environment） |
|
Chip Life |
10 Years |
|
Anti-conflict |
Yes |
|
Other Features： |
|
|
Size |
110*40MM |
|
Basic Material |
Waterproof PET material |
|
Adhesive Type |
3M Strong Adhesive |
|
Antenna |
Aluminum |
|
Working temperature |
-10℃~+70℃ |
|
Working humidity |
≤80% |
| Product Display： |

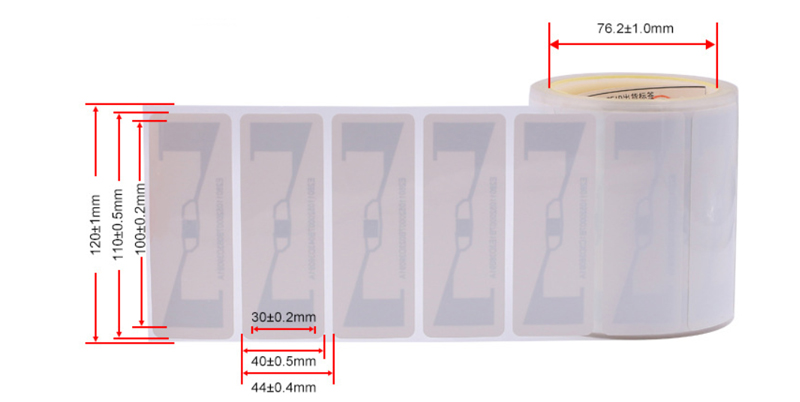

- Shape And Size：
- Antenna Size：100*30MM（±0.2MM）
- Label Size：110*40MM（±0.5MM）
- Distance Between Label And Label：44.0±0.4MM
- The edge of label：5.0±1.0MM
- The Length Of Paper Magnetic Stripe：120±1.0MM

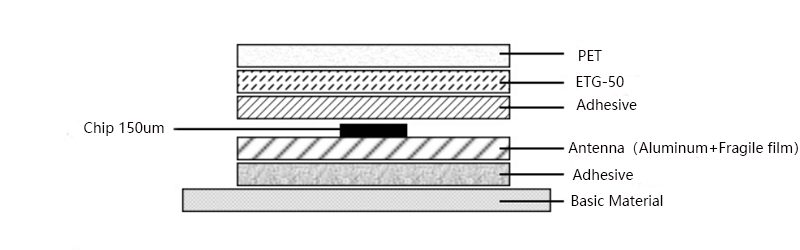

| Label Structure： |

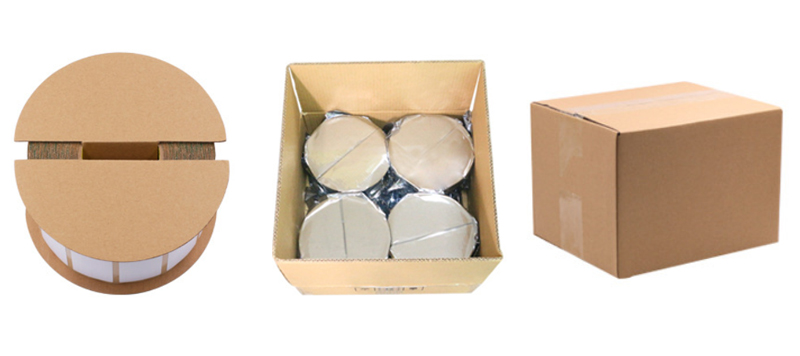

| Packing Details： |
- Standard In Roll：500PCS/Roll，1000PCS/Roll
- Standard Package：1Roll/Carton（500PCS/1000PCS）; 4Rolls/Carton(4000PCS)
- Weight：500PCS：1.5KG；1000PCS：3KG；4000PCS：12KG；
- Carton Size：1Roll：23*23*18CM；4Rolls: 46*46*16CM
Features:
- Customized service : Shape and size can be customized,normal size or mirco size uhf rfid sticker
- Antenna type: Aluminum or double copper antenna
- Material : PET waterproof, resistance of chemical and heating or PVC, Paper
- Printing : Custom 4C LOGO printing or white sticker, wet inlay
- Packing : By pcs or roll perfect fit your installation
- Sticker Glue: Use special supur glue and can resistant high temperature 200℃
