Long Distance Alien H3 RFID Anti-Metal Tags For Asset Management
It is the most fertile field for supply chain management and logistics management in RFID application. RFID in the supply chain plays a major role in enhancing the visibility right from the point of manufacturing, via supply chain, and most significantly from the back room to the floor, and ultimately to the exit door.

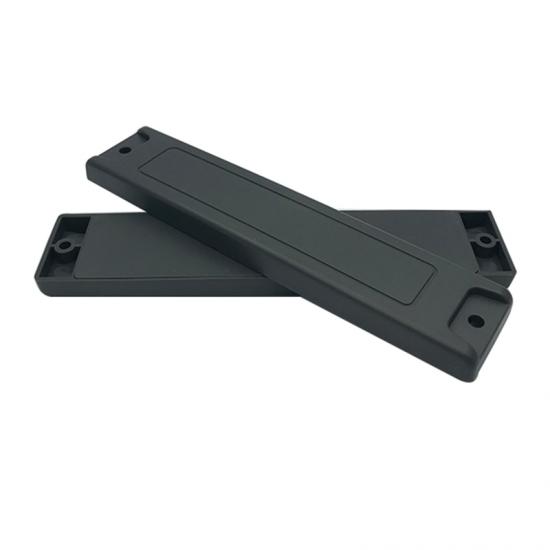

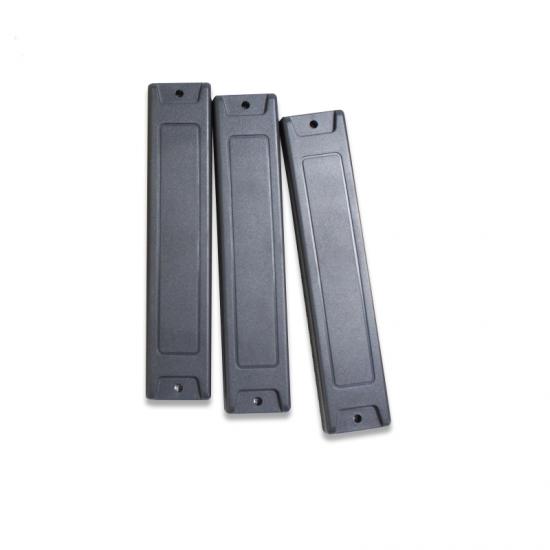

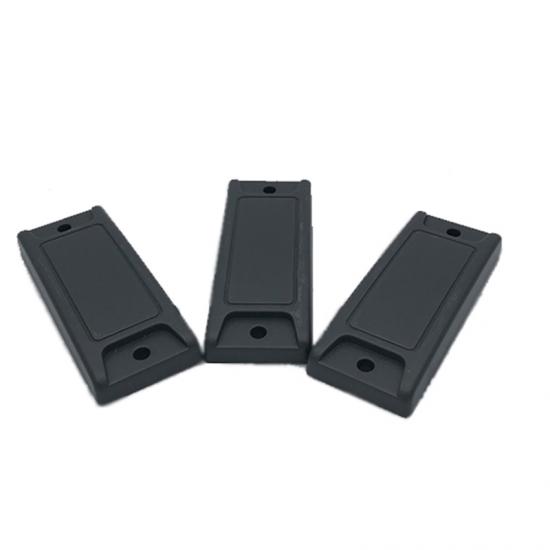

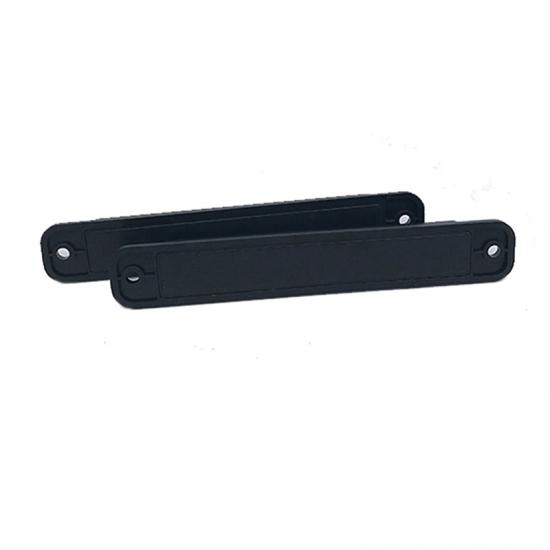

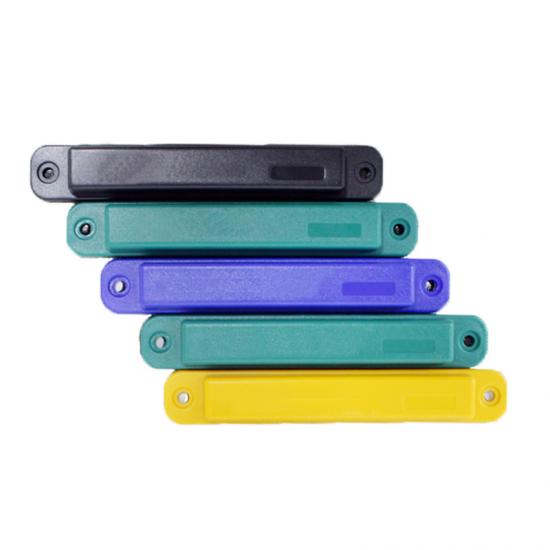

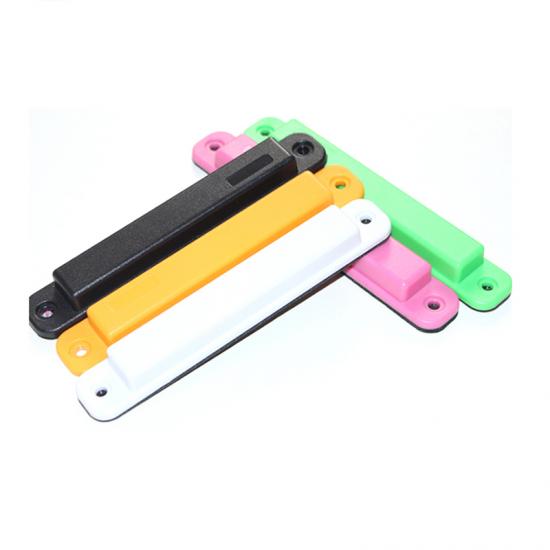

Products Display :
Product Structure:
RFID Logistics Labels
Products Description :
|
Parameters |
|
|
Chip |
UHF:H3 H3/H4,Monza4/5,UC 7 or customized |
| Protocol | ISO18000-6C |
|
Size |
80*80mm,135*22*12mm(as picture), 73*20,80*80,100*50,65*15*12,87*41*8,1mm,or customized. |
|
Memory |
96bit,128bit.etc. |
|
Frequency |
860-960MHz |
|
Material |
Coated paper,CPC,ABS+foam, PVC, PET,or customized |
| Write Endurance | ≥100000 cycles |
|
Reading Range |
UHF:0-10m(depends on the reader and antenna) |
|
Application |
Logistics ,Asset management,Stock control,Warehouse,Item tracking,etc. |
|
Optional Craft |
|
|
Color |
black, yellow, red, green, blue, pink etc. |
| Craft | Single color or Multi-color Printing,Barcode or QR Code printing,Laser engrave,Data encoding,etc. |
|
Package |
|
|
Type |
piece by piece,in roll,or customized |
|
Volume carton |
50x45x35cm |
|
Quantity |
15pcs/bag, 32bags/ctn; 1000pcs/roll,2000pcs/roll |
|
Weight |
8.6kg/ctn;1kg/roll |
FAQ:
Q1. Can I get sample for test ?
1. Yes sure, and samples without printing is free.
Q2. What chip should I use? And Inlay?
We have LF, HF and UHF chips with various memory and reading distance. If you are not sure, please inform our sales with project details.
Here are some commonly used chips and inlays for your reference:
1. LF (0-5cm): TK4100 (64 Bit), HitagS256 (256 Bit), EM4305 (512 Bit).
2. HF (0-15cm): N213 (144 Byte), F08 (1K Byte), IC SLIX (128 Byte).
3. UHF (1-10m): H3 (96 Bit), H3 H4 (96 Bit), Monza 4D ( 128 Bit).
4. Inlay: H3 9654, H3H4 9762, M4QT, M4E.
Chips are then mounted on different inlays (Antenna etched on PET layer) for achieving different reading distance and angles. Our sales will provide you the most suited inlay if not specified.
Q3. What the data can I encode to each Tag?
We can encode different serial numbers, URL/website, Text to each Tag as your request.
Q4. What file of printing image should I offer to you?
Design Files of AI, PDF, Corel Draw, Photoshop, CAD format are supported. If no, then send us JPG or BMP, we can design for your confirmation, it takes longer time though.
Q5. What about sizes?
All the size and the shape of the final product can be customized as your request. For die-cutting the minimum size should be 4mm bigger than inlay normally.
Q6. NFC Anti-metal material thickness?
We have 0.15mm, 0.2mm, 0.35mm and 0.5mm thick absorbing material for your reference.
Q7. What About the Payment terms ?
We accept T/T, Western Union, PayPal, MoneyGram.
PS: We can accept the 50% deposit, 50% payment before shipment .
Q8. What about lead time?
Quantity below 100,000pcs normally 7-12 days. We will prioritize arrange if urgent , and pls infirm us before production as soon as possible.
