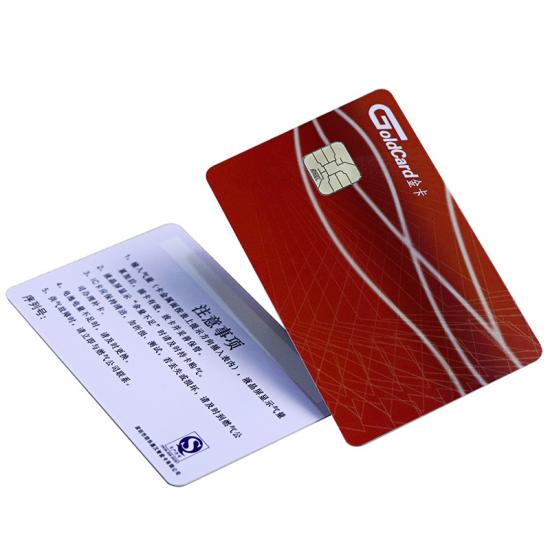

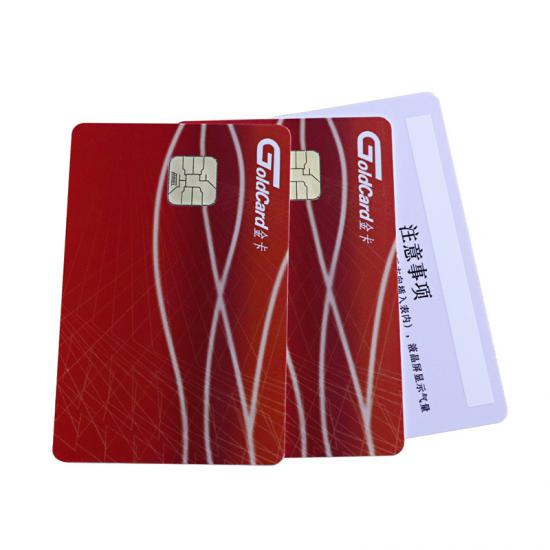

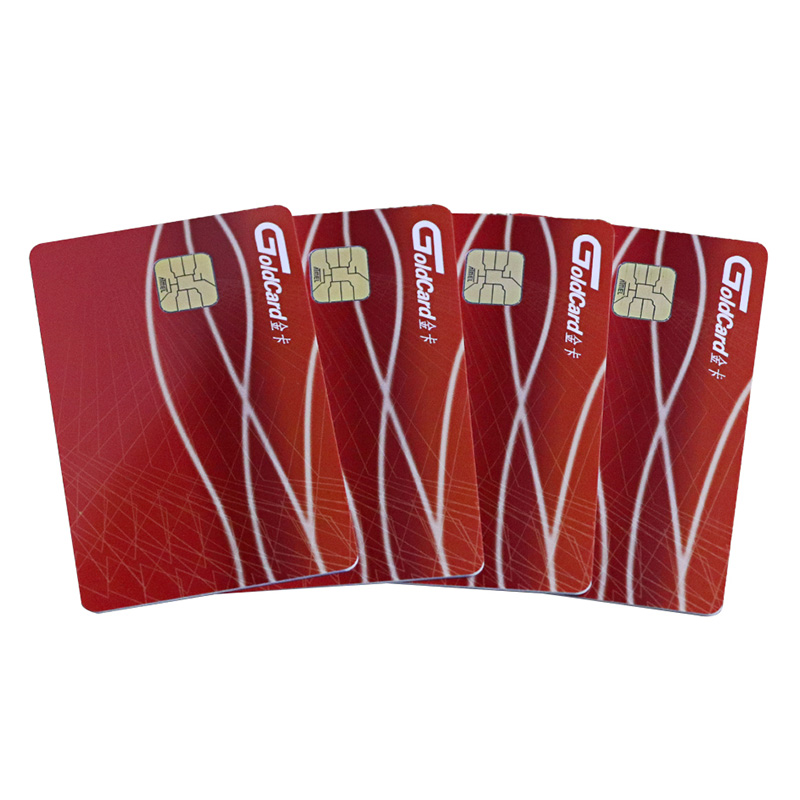

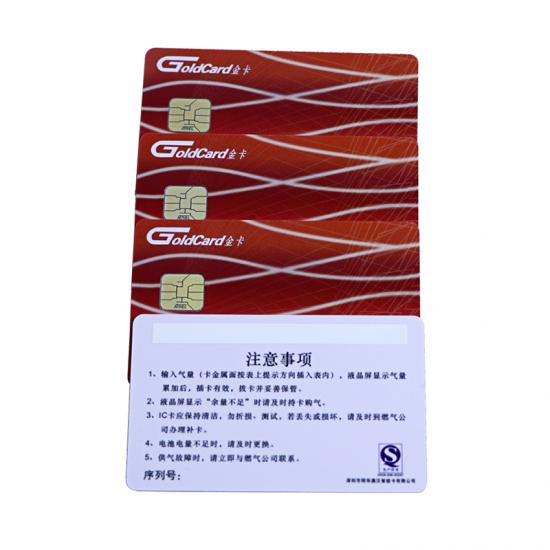

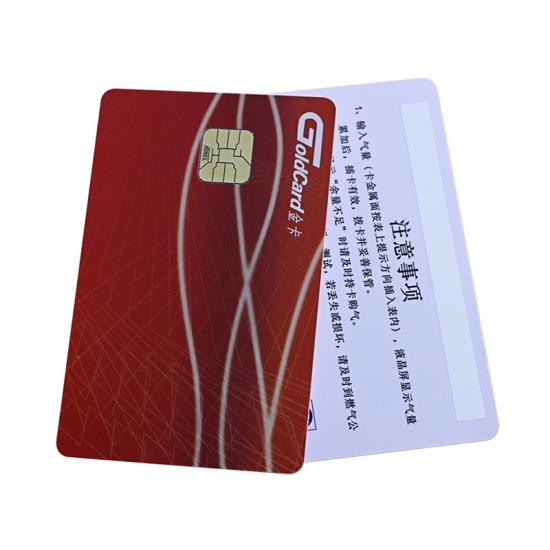

CR80 ISO7816 Atmel 24C64 64K Contact IC Cards

The ISO7816 Atmel 24C64 64K Contact IC Card,which using 100% full new plastic PVC material to print and with overlay laminated. The color can be reach up to 98%. We also can supply different contact IC chip cards as your requirements. Free design and free blank sample and similar sample for your test .


  • Item no.:

    DFTC004
  • Payment:

    T/T,Western Union, PayPal, MoneyGram
  • Product origin:

    China
  • Color:

    Full color
  • MOQ:

    500PCS
  • Shipping port:

    Shenzhen
  • Lead Time:

    5-7 days
  • Product Details

  • CR80 ISO 7816 Atmel 24C64 64K Contact IC Cards


  • Shortly Description:

The PVC AT24C64 IC Card provides 65,536 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 4096/8192 words of 8 bits each. With 8192-byte non-encrypted card has only two operations: read and write.
The AT24C32/64 is available in space saving 8-pin JEDEC PDIP, 8-pin and 14-pin JEDEC SOIC, 8-pin EIAJ SOIC, and 8-pin TSSOP packages and is accessed via a 2-wire serial interface.
In addition, the entire family is available in 5.0V (4.5V to 5.5V), 2.7V (2.7V to 5.5V),2.5V (2.5V to 5.5V) and 1.8V (1.8V to 5.5V) versions.



Product Details:

Plastic 24C64 64K Contact IC Cards
Iterm  PVC AT24C64 Contact IC Smart Cards
Material  PVC ,ABS ,PET,PETG ,Wood
Size  85.5*54MM
Thickness  0.87MM  or demand
Print  Offset Printing ,Silkscreen Printing
Surface  Glossy ,Matte, Frosted
Available Crafts
Hot Foil ( gold /silver /green /rainbow /red or custom ), Embossed /Engraving numbering ,Barcode ,Magnetic stripe ,Signature panel , Scratch off , Encoded data ,UV spot ,anti-fake , Hologram ,UV ink or Customized .
Application  Mainly used for equipment control, data storage, etc., such as driver training card, beauty equipment control card, door lock control card, etc.

  • AT24C64 Chip Cards Features:
  •  AT24C is the serial number, and the number part is the K-bit capacity, which are 2K, 4K, 8k, 16K, 32K, 64K,
  • Its use method is exactly the same as EPROM, the storage structure is simple, and it only has two operation functions: read and write;
  •  Mainly used to store some data with low confidentiality requirements;
  •  The working frequency of AT24C series is 1MHz (5V), 1MHz (2.7V), 400KHz (1.8V);
  •  The working voltage is 5V ± 10%, and can be as low as 1.8V according to requirements;
  • ICC current reading maximum is 1mA, writing maximum is 3mA;
  •  The number of write/erase is 10 million times;
  • The data is kept for 100 years;
  • The working temperature is O-70℃, which can exceed the specified working temperature according to requirements;
  • The communication protocol complies with ISO/IEC 7816-3 synchronization protocol, two-way serial interface;
  •  It is mainly used to store some data with low confidentiality requirements, such as data storage, telephone cards and campus cards and other fields;
  • Single structure, no partitions, only read and write operations, contact IC card, exquisite printing process. It is a plastic card with a large-scale integrated circuit built-in. The size is the same as the phone card. It embeds a microprocessor with storage, encryption and data processing capabilities and a large-capacity memory integrated circuit chip on a non-foldable plastic substrate the same size as a credit card, and can process information relatively independently like a computer A card-type modern information load tool for information exchange.

Personalized At24C64 Contact Smart Card



The series of memory card models produced by ATMEL:

ATMEL24C01


ATMEL24C02

ATMEL24C04

ATMEL24C08

ATMEL24C16

ATMEL24C32

ATMEL24C64

ATMEL memory card, is a kind of EEPROM card without encryption function, AT24C is the serial number, the digital part is K-bit capacity, respectively 1K, 2K, 4K, 8k, 16K, 32K, 64K. Its use method is exactly the same as that of EPROM, its storage structure is simple, and it only has two operation functions: read and write. It is mainly used to store some data that does not require high confidentiality.


  • Payment Term:
By T/T, Western Union or Paypal or Money Transfer
50% as deposit of the total payment before bulk production and 50% balance payment before delivery.
  • Production Time:
Normal 3-5 Working days after payment (below 10000pcs),
5~7 Working  days after checking the 50% deposit (below 50,000pcs),
7-10 Working days if over 100,000PCS
  • Delivery Methods :
1, DHL ,FEDEX ,UPS ,TNT,ARAMEX ; Door to door service
2, By air or by sea for bulk goods ;
3, Support customer specifying forwarder or shipping method
