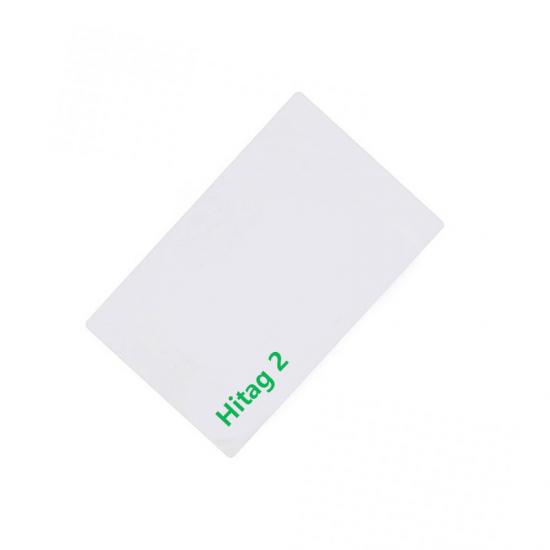

- White 125KHz Hitag2 256Bits RFID Access Control Card
- Description :
This White Blank Hitag2 256Bits RFID access control card is a type of smart card that uses radio frequency identification (RFID) technology to communicate with a reader and grant access to a restricted area or system. The card can be printable and customized with your logo, text, code or any informations.This Hitag2 contactless cards works at frequency 125KHz and uses Hitag2 protoco, which provides 256 bits of memory and encryption features. Commonly it widely used for access control system, parking system, ticketing system and other applications.
|
Product Details |
|
|
Item |
125KHz Hitag2 RFID Cards For Access Control |
|
Size |
85.5*54MM or Custom |
|
Thickness |
0.86MM or Custom |
|
Material |
PVC, ABS, PET, PETG |
|
Surface Finish |
Glossy , ( Matte/Frosted are available ) |
| Optional Print |
Offset Printing , Silkscreen Printing , Inkjet Printing , Digital Printing ... |
| Available Crafts |
Magnetic Stripe , Signature Panel , Barcode/QR code , Encoding , Hot Foil , Anti- Fake , Silver/ Gold Background .... |
|
Technology Details |
|
|
Chip |
Higtag 2 |
| Other Available 125KHz Chip |
TK4100；EM4200；EM4305；EM4450；T5577; Hitag1; HitagS... |
|
Working Frequency |
125KHz |
|
Storage Capacity |
256 bit, 32 bit, unique ID serial number |
|
Reading Distance |
2.5～10cm |
|
Reading and Writing Time |
1～2ms |
|
Working temperature: |
-40℃～85℃ |
|
Erase life |
100,000Times |
|
Data Preservation |
>10 years |
|
Type |
Memory card |
|
Reading and Writing Method |
Non-contact IC card/Contactless Cards |
|
Application Areas |
Non-financial RFID cards |
| Application |
Time attendance system, Access control system, Identification, Low frequency tag card, etc. |
Special Features
• user defined write protection
• unique 32 bit serial number for each transponder
• read only emulation function (µEM H400x family, ISO 11784 and 11785, PIT compatibility)
• encrypted data transmission possible
