- Description :

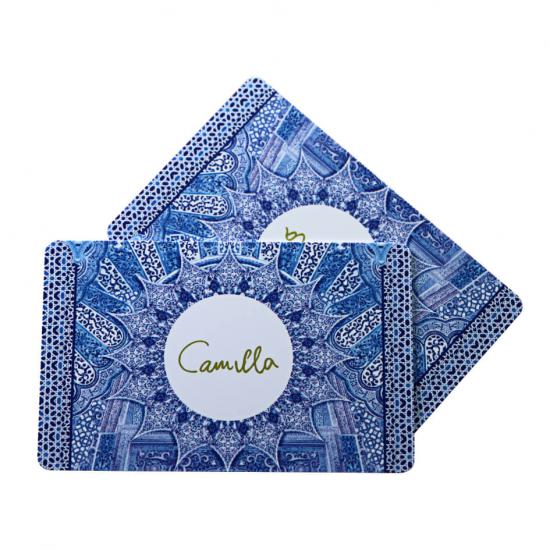

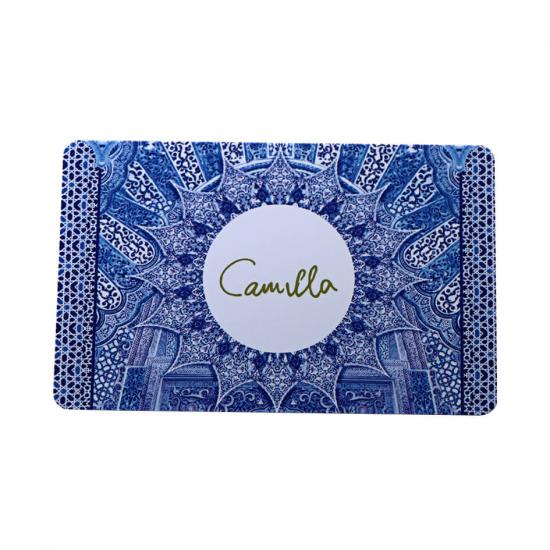

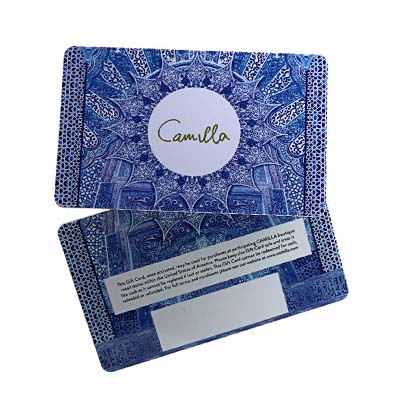

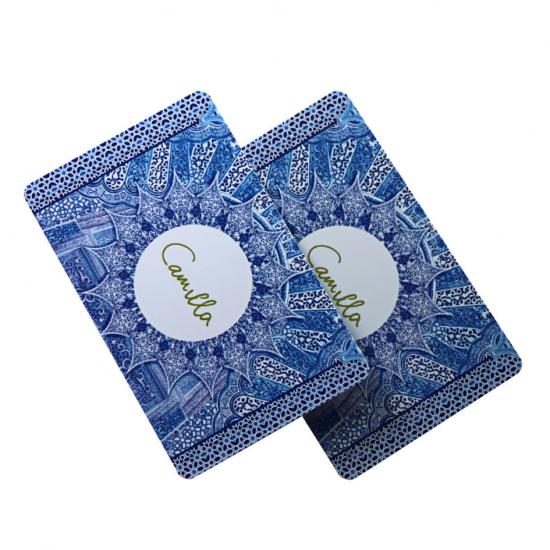

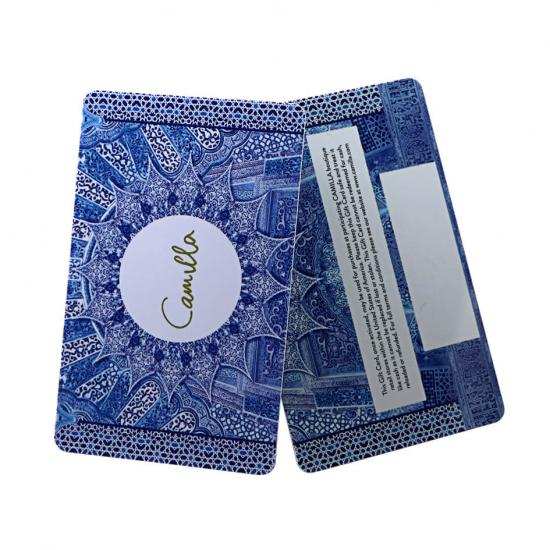

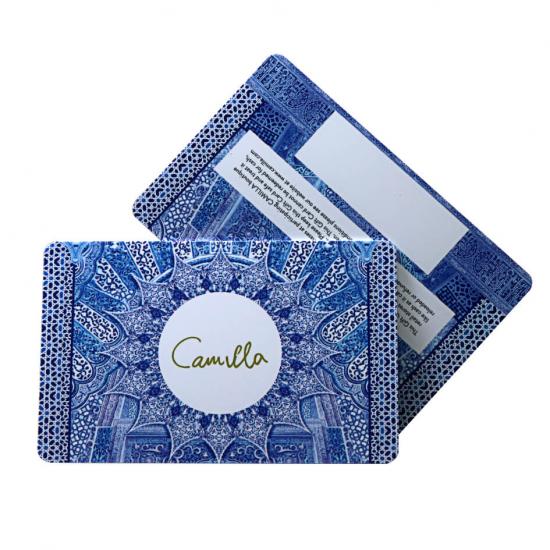

This product is a 13.56MHz RFID MIFARE DESFire EV1 4K card that complies with ISO/IEC 14443A and ISO/IEC 7816-4 standards. It has a 4K byte non-volatile memory, a high-speed triple-DES data encryption co-processor, a flexible memory organization structure and a mutual three-pass authentication mechanism. It can be used for advanced public transportation, access management, e-government, identity and other applications. It offers high security and reliability with password protection and anti-tear function. It is made of durable PVC material and has a standard credit card size.
 |
• Chip: MIFARE DESFire EV1 |
|
EEPROM size [byte] |
4096 byte |
|
OTP area [bit] |
- |
|
Write Endurance [cycles] |
500 000 cycles |
|
Data Retention [yrs] |
10 |
|
Organization |
flexible file system |
|
RF-Interface |
|
|
Acc. to ISO 14443A |
yes - up to layer 4 |
|
Frequency [MHz] |
13.56MHz |
|
Baudrate [kbit/s] |
106 to 848 kbit/s |
|
Anticollision |
bit-wise |
|
Operating Distance [mm] |
up to 100MM |
|
Serial Number [byte] |
7 B UID Byte |
- Application: Advanced public transportation, access management, e-government, identity, etc.
Advantages:
• Compatible with most 13.56MHz RFID readers and systems
• High-performance and versatile chip with triple-DES encryption and random number generator
• Flexible and convenient memory structure with multiple applications and files
• High security and reliability with password protection and anti-tear function
• Durable and waterproof with PVC material
• Customizable printing and encoding according to customer's needs
FAQ:
Q: How can I write or encode the MIFARE DESFire EV1 card?
A: You need a MIFARE DESFire EV1 card writer/encoder device, which can be connected to a computer or a mobile phone via USB or Bluetooth. You can use the software or app provided by the device to write or encode the data to the MIFARE DESFire EV1 card.
Q: How can I read the MIFARE DESFire EV1 card?
A: You need a 13.56MHz RFID reader device, which can be connected to a computer or a mobile phone via USB or Bluetooth. You can use the software or app provided by the device to read the data from the MIFARE DESFire EV1 card.
Q: How can I print the MIFARE DESFire EV1 card?
A: You can use a sublimation printer or a thermal printer to print the graphics or text on the MIFARE DESFire EV1 card. You can also send us your design and we can print it for you.
