- 9662 Dry Inlay For RFID Sticker Tags

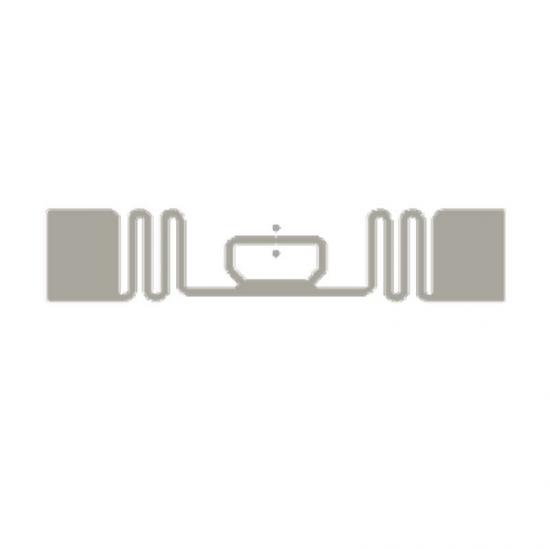

M750 UHF RFID adhesive inlay tags are designed to provide reliable and consistent performance in various environments and materials. They have a compact antenna size of 70 x 14 mm and a die cut size of 74 x 18 mm. They have a 96-bit EPC memory and a 32-bit user memory. They also have a 96-bit TID memory with a 48-bit unique serial number embedded into the TID.
The Impinj M750 chip that powers these tags offers up to 2 dBm more read sensitivity than its previous generation, the Monza R6 chip. This translates to improved read distance of up to 4 meters on stacked denim and up to 6 meters on high dielectric materials (PMMA). The chip also enables features such as AutoTuneTM, which automatically adjusts the tag's performance to the environment; EnduroTM, which improves the tag's robustness and reliability; IntegraTM, which monitors the tag's health and quality; FastIDTM, which speeds up inventory and authentication processes; TagFocusTM, which reduces interference from nearby tags; and more.
M750 UHF RFID adhesive inlay tags are compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management standards. They are also certified by the RFID Lab at Auburn University for their quality and performance. They are suitable for a wide range of applications such as apparel and fashion, healthcare, logistics, supply chain, and inventory management. They can be easily applied to various surfaces such as cardboard, plastic, fabric, and metal.
M750 UHF RFID adhesive inlay label are the ideal solution for your RFID tagging needs. They offer high performance, flexibility, and durability at an affordable price.
- Long Range Rfid Label Tag
- Chip : M750
-
Frequency: 860~960MHz
- Read Distance : 8 meters
-
FEATURES
EPCglobal Gen2 and ISO/IEC 18000-6c
512 User Bits
48-Bit Unique TID (unalterable serial number)
96-Bit EPC Memory
32-Bit User Memory
Read Sensitivity -24
Frequency Band Of Impinj M750 Long Range Uhf Rfid Label :
Model | EPC Memory | User Memory | Reserved | TID |
M750 | 96 bits | 32 bits | 0 | 48 bits |
