- Alien H3 9662 RFID AdhesiveTags For Inventory
- Description :
These UHF RFID Adhesive Tags is attached to an items, the label consist of an circuit of antenna and chip than can transfer data and programming with the RFID reader. The tag transmittes the stored data in the form of radio waves.
The tag has a RFID Alien H3 chip with unique UID code and a big memory of 96 bits EPC, User memory 512 bits, which supports ISO 18000-6C standard.
This RFID adhesive sticker can custom in various of different shapes and sizes, adjusted frequency and read distance according to client's request. This label is ideal for inventory management, asset management, logistics management, warehouse management, jewelry management etc,.
|
tem |
Alien H3 UHF RFID Adhesive Tag |
|
Chip |
Alien H3, Monza 4D/4E/4QT, etc. |
|
Substrate |
PET |
|
Antenna Process |
Aluminum ETCH(AL10um) |
|
Protocal |
ISO/IEC 18000-6C, EPC Class1 Gen2 |
|
Operating Frequency |
860~960MHz |
|
Operating Mode |
Passive |
|
Write Cycles |
100000 |
|
Operating Limits |
-70℃/ 20%~90% RH. |
|
Storage Limits |
-20~50℃/ 20%~90% RH(Without condensation). |
|
The Recommended Storage |
Temperature 20~30℃/ 50% RH. |
|
Application |
|
|
Inlay Format |

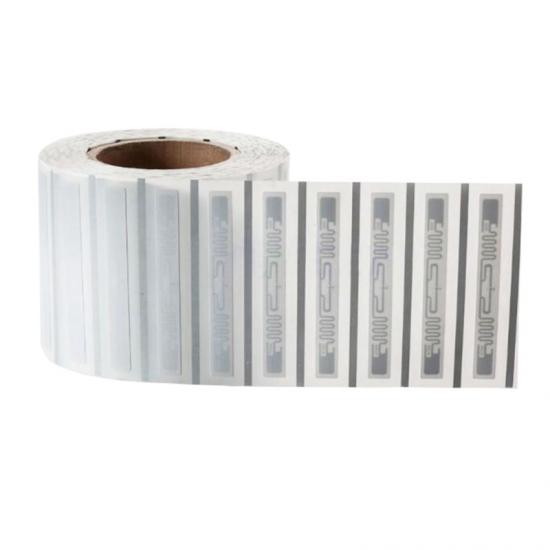

in roll |
|
Delivery Format |
5000±100pcs/roll, 4 rolls /carton |
