The Atmel 24C64 Chip Card
Aug 31 , 2020

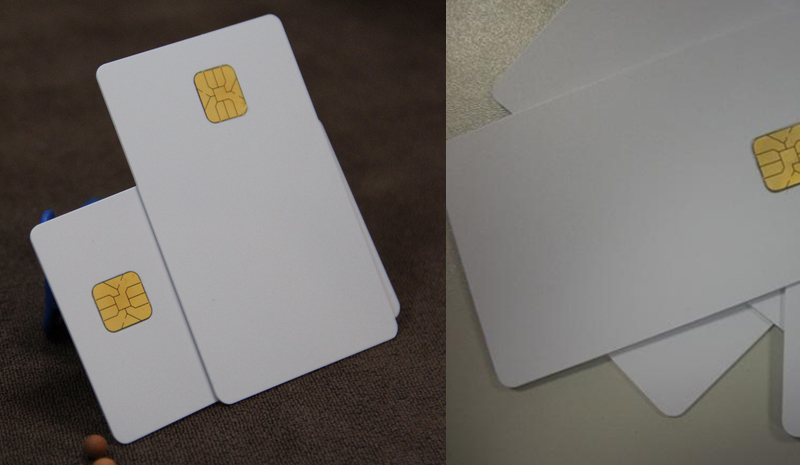

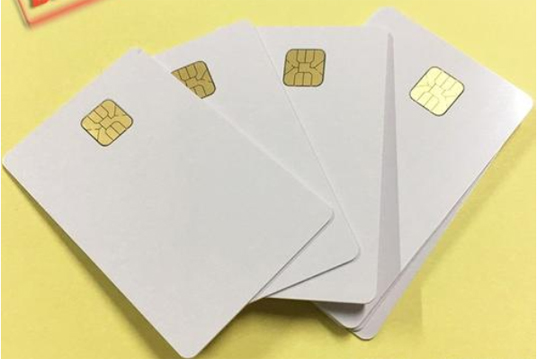

The Atmel 24C64 IC Chip Card.
The 24C64 IC card is a kind of contact chip card, which belongs to memory chip card. Currently the main widely used for equipment control, data storage, etc., Such as driving trainee card, beauty equipment control card, door lock control card and so on. The 24C64 is one of the first memory chips produced by Atmel. There are also have one FM24C64 chip by Fudan Company in China, it is fully compatible with Atmel 24C64. And cheaper than original Atmel24C64 chip cards as well. Related 24C64 contact memory IC card In the following :
- 24C01 IC card
-24C02 IC card
-24C04 IC card
-24C08 IC card
-24C16 IC card
-24C32 IC card
-24C64 IC card and so on.
-
A series of memory card models produced by ATMEL:
ATMEL24C01/ATMEL24C02/ATMEL24C04/ATMEL24C08/ATMEL24C16/ATMEL24C32/ATMEL24C64 ATMEL memory card, is a kind of EEPROM card without encryption function, AT24C is the serial number, the digital part is K-bit capacity, respectively 1K, 2K, 4K, 8k, 16K, 32K, 64K. Its use method is exactly the same as that of EPROM, its storage structure is simple, and it only has two operation functions: read and write. It is mainly used to store some data that does not require high confidentiality.
-
AT24C64 Chip Cards Features:
☆. AT24C is the serial number, and the number part is the K-bit capacity, which are 2K, 4K, 8k, 16K, 32K, 64K,
☆. Its use method is exactly the same as EPROM, the storage structure is simple, and it only has two operation functions: read and write;
☆. Mainly used to store some data with low confidentiality requirements;
☆. The working frequency of AT24C series is 1MHz (5V), 1MHz (2.7V), 400KHz (1.8V);
☆. The working voltage is 5V ± 10%, and can be as low as 1.8V according to requirements;
☆. ICC current reading maximum is 1mA, writing maximum is 3mA;
☆. The number of write/erase is 10 million times;
☆. The data is kept for 100 years;
☆. The working temperature is O-70℃, which can exceed the specified working temperature according to requirements;
☆. The communication protocol complies with ISO/IEC 7816-3 synchronization protocol, two-way serial interface;
☆. It is mainly used to store some data with low confidentiality requirements, such as data storage, telephone cards and campus cards and other fields;
☆. Single structure, no partitions, only read and write operations, contact IC card, exquisite printing process. It is a plastic card with a large-scale integrated circuit built-in.
The size is the same as the phone card. It embeds a microprocessor with storage, encryption and data processing capabilities and a large-capacity memory integrated circuit chip on a non-foldable plastic substrate the same size as a credit card,
and can process information relatively independently like a computer A card-type modern information load tool for information exchange.
