- 125KHz T5577 RFID HID Proximity Card
- Description :
This product is a 125KHz RFID HID Proximity Card With T5577 Chip. It is compatible with most access control security systems using the 26 bit H10301 standard format. It can be used for identification, access control, time attendance and other applications. It has a read/write memory of 330 bits and a password protection function. It is made of durable PVC material and has a standard credit card size.
Facility Code: These access control cards have a facility code of 128

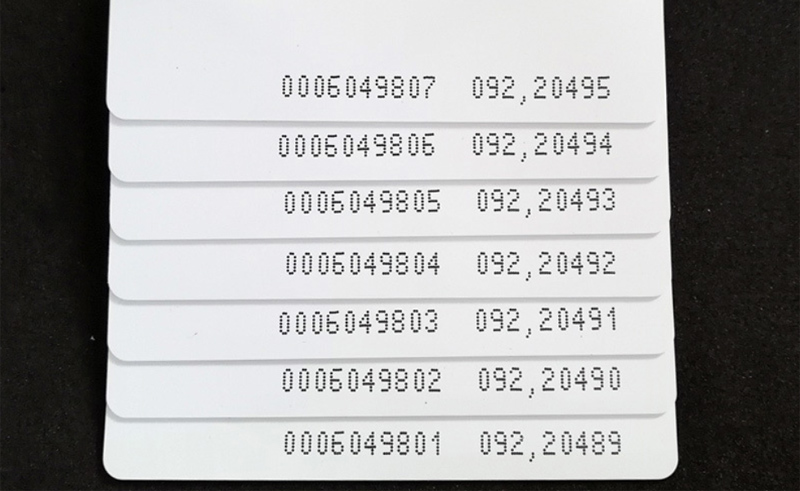

Card Number: The internal and external numbers match.
Product Details:
• Chip: T5577
• Frequency: 125KHz
• Memory: 330 bits EEPROM (10 blocks, 33 bits each)
• Read/Write: Yes
• Password protection: Yes
• Format: 26-bit Wiegand
• Material: PVC
• Size: 85.5 x 54 x 1.8 mm
• Color: White
• Printing: Customizable
Product advantages:
• Compatible with most 125KHz HID readers and systems
• Rewritable and programmable by T5577 card writer/copier
• High security and reliability with password protection
• Durable and waterproof with PVC material
• Customizable printing and encoding according to customer's needs
|
HID Proximity Card Types |
||
|
Programmed 26 Bit and Other Formats Available
|
 |
|
|
Programmed 26 Bit and Other Formats Available
|
 |
|
|
Programmed 26 Bit and Other Formats Available
|
 |
|
HID Prox RFID card 125khz RFID proximity hid compatible access control cards (pack of 10), widely used in :
- Access Control
- Parking System
- Company
- Attendance
- School...
- Features：
• Graphics quality surface for use with direct image printers
• Same size and thickness as a standard credit card
• Vertical or horizontal slot punch capability
• 2 Years warranty
• Serial ID number or customizable UID code or write the same UID number
FAQ:
Q: How can I write or copy the T5577 card?
A: You need a T5577 card writer/copier device, which can be connected to a computer or a mobile phone via USB or Bluetooth. You can use the software or app provided by the device to write or copy the data to the T5577 card.
Q: How can I read the T5577 card?
A: You need a 125KHz HID reader device, which can be connected to a computer or a mobile phone via USB or Bluetooth. You can use the software or app provided by the device to read the data from the T5577 card.
Q: How can I print the T5577 card?
A: You can use a sublimation printer or a thermal printer to print the graphics or text on the T5577 card. You can also send us your design and we can print it for you.
Q: How long is the delivery time for the T5577 card?
A: The delivery time depends on the quantity and customization of your order. Normally, it takes about 5-10 working days after we receive your payment and confirmation.
